AMI Semiconductor / ON Semiconductor

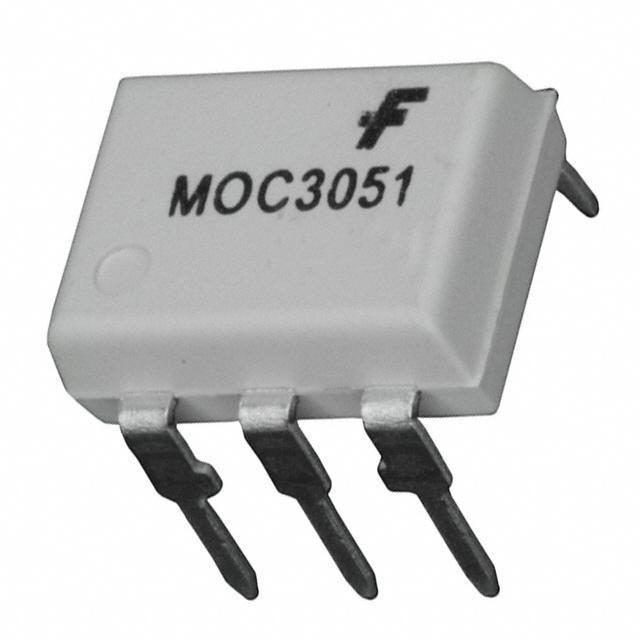

| Part Number | MOC3051M | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISOLATOR 4.17KV TRIAC 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72542 pcs | Data sheet | MOC3051M.pdf |
| Zero Crossing Circuit | No | Voltage - Off State | 600V |
| Voltage - Isolation | 4170Vrms | Voltage - Forward (Vf) (Typ) | 1.18V |
| Turn On Time | - | Supplier Device Package | 6-DIP |
| Static dV/dt (Min) | 1kV/µs | Series | - |
| Packaging | Tube | Package / Case | 6-DIP (0.300", 7.62mm) |
| Output Type | Triac | Other Names | MOC3051-M MOC3051-MQT MOC3051-MQT-ND MOC3051QT |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Optoisolator Triac Output 4170Vrms 1 Channel 6-DIP | Current - LED Trigger (Ift) (Max) | 15mA |
| Current - Hold (Ih) | 220µA (Typ) | Current - DC Forward (If) (Max) | 60mA |
| Approvals | UR |
