MJH6284

AMI Semiconductor / ON Semiconductor

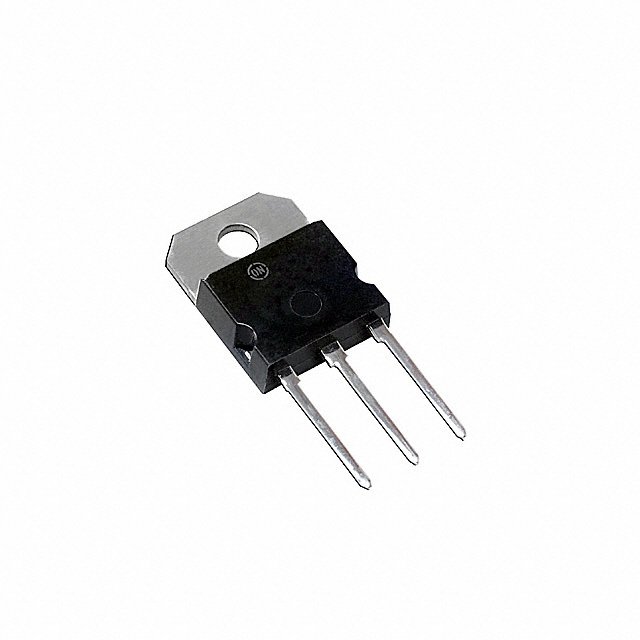

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MJH6284
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	TRANS NPN DARL 100V 20A TO218
Datasheets:	MJH6284.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	3181 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3181 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MJH6284

Part Number	MJH6284	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	TRANS NPN DARL 100V 20A TO218	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	3181 pcs	Data sheet	MJH6284.pdf
Voltage - Collector Emitter Breakdown (Max)	100V	Vce Saturation (Max) @ Ib, Ic	3V @ 200mA, 20A
Transistor Type	NPN - Darlington	Supplier Device Package	SOT-93
Series	-	Power - Max	160W
Packaging	Tube	Package / Case	TO-218-3
Other Names	MJH6284OS	Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Frequency - Transition	4MHz
Detailed Description	Bipolar (BJT) Transistor NPN - Darlington 100V 20A 4MHz 160W Through Hole SOT-93	DC Current Gain (hFE) (Min) @ Ic, Vce	750 @ 10A, 3V
Current - Collector Cutoff (Max)	1mA	Current - Collector (Ic) (Max)	20A
