MC33362DWR2G

AMI Semiconductor / ON Semiconductor

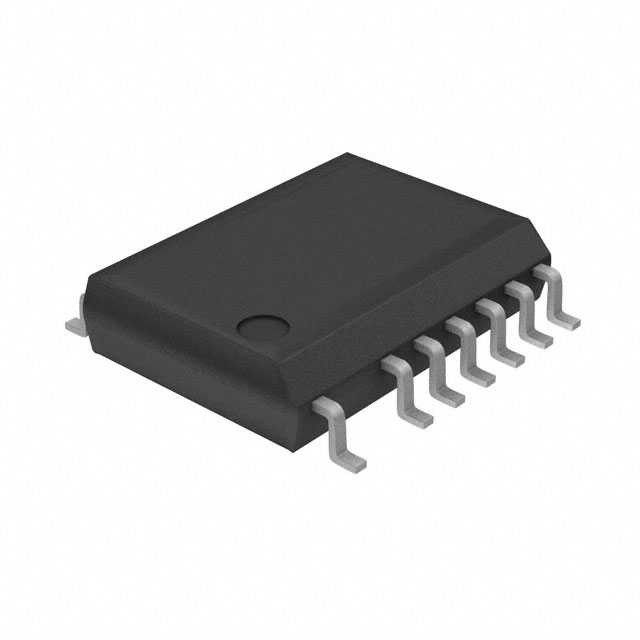

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MC33362DWR2G
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC SWIT PWM OVP UVLO HV 16SOIC
Datasheets:	MC33362DWR2G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4192 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4192 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MC33362DWR2G

Part Number	MC33362DWR2G	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC SWIT PWM OVP UVLO HV 16SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4192 pcs	Data sheet	MC33362DWR2G.pdf
Voltage - Supply (Vcc/Vdd)	9.5 V ~ 40 V	Voltage - Start Up	14.5V
Voltage - Breakdown	500V	Topology	Flyback, Forward
Supplier Device Package	16-SOIC	Series	-
Packaging	Tape & Reel (TR)	Package / Case	16-SOIC (0.295", 7.50mm Width), 13 Leads
Output Isolation	Isolated	Other Names	MC33362DWR2GOS
Operating Temperature	-25°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency - Switching	67.5kHz ~ 285kHz
Fault Protection	Current Limiting, Over Temperature, Over Voltage	Duty Cycle	50%
Detailed Description	Converter Offline Flyback, Forward Topology 67.5kHz ~ 285kHz 16-SOIC	Control Features	Frequency Control
Base Part Number	MC33362
