LV8136V-MPB-H

AMI Semiconductor / ON Semiconductor

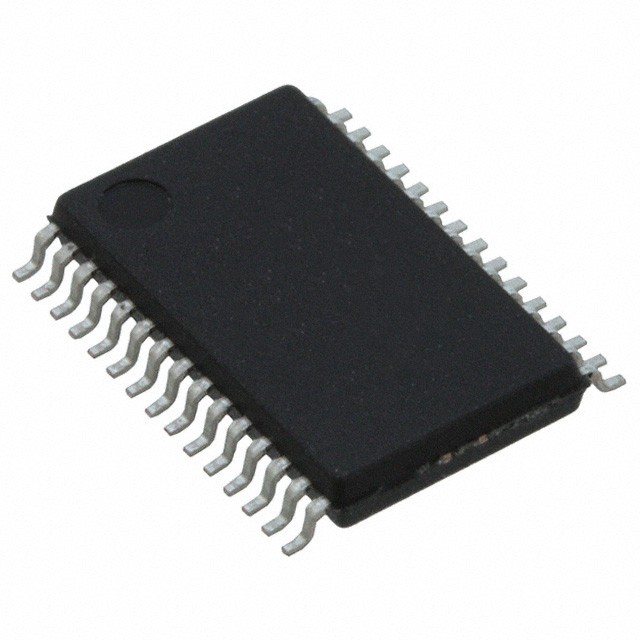

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LV8136V-MPB-H
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC MOTOR CONTROLLER PAR 30SSOP
Datasheets:	LV8136V-MPB-H.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5183 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5183 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LV8136V-MPB-H

Part Number	LV8136V-MPB-H	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC MOTOR CONTROLLER PAR 30SSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5183 pcs	Data sheet	LV8136V-MPB-H.pdf
Voltage - Supply	9.5 V ~ 16.5 V	Voltage - Load	-
Technology	Bi-CMOS	Supplier Device Package	30-SSOP
Step Resolution	-	Series	-
Packaging	Cut Tape (CT)	Package / Case	30-LSSOP (0.220", 5.60mm Width)
Output Configuration	Pre-Driver - Half Bridge (3)	Other Names	LV8136V-MPB-HOSCT
Operating Temperature	-40°C ~ 105°C (TA)	Mounting Type	Surface Mount
Motor Type - Stepper	-	Motor Type - AC, DC	Brushless DC (BLDC)
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel	Function	Controller - Commutation, Direction Management
Detailed Description	Motor Driver Bi-CMOS Parallel 30-SSOP	Current - Output	-
Base Part Number	LV8136	Applications	Appliance
