LB11683H-MPB-E

AMI Semiconductor / ON Semiconductor

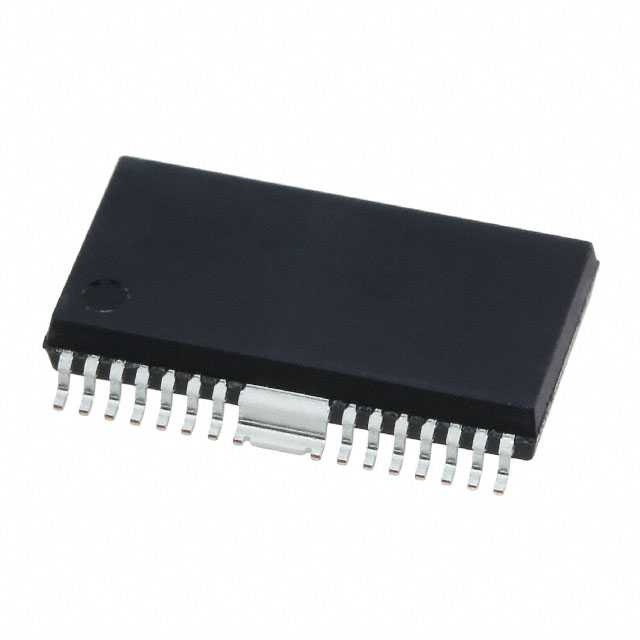

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LB11683H-MPB-E
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC MOTOR DRIVER PAR 28HSOP
Datasheets:	LB11683H-MPB-E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6547 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6547 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LB11683H-MPB-E

Part Number	LB11683H-MPB-E	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC MOTOR DRIVER PAR 28HSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6547 pcs	Data sheet	LB11683H-MPB-E.pdf
Voltage - Supply	5.5 V ~ 13.8 V	Voltage - Load	5.5 V ~ 13.8 V
Technology	Bipolar	Supplier Device Package	28-HSOP-HC
Step Resolution	-	Series	-
Packaging	Tape & Box (TB)	Package / Case	28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs
Output Configuration	Half Bridge (3)	Operating Temperature	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount	Motor Type - Stepper	-
Motor Type - AC, DC	Brushless DC (BLDC)	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Parallel
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Motor Driver Bipolar Parallel 28-HSOP-HC
Current - Output	1.5A	Base Part Number	LB11683
Applications	General Purpose
