ISL9V5036P3-F085

AMI Semiconductor / ON Semiconductor

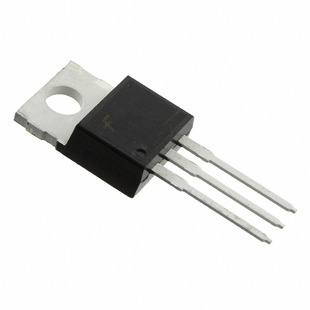

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ISL9V5036P3-F085
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IGBT 390V 46A 250W TO220AA-3
Datasheets:	ISL9V5036P3-F085.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	30105 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 30105 pcs

Reference Price (In US Dollars)

1 pcs: $1.091

10 pcs: $0.981

400 pcs: $0.763

800 pcs: $0.684

1200 pcs: $0.577

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.091

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ISL9V5036P3-F085

Part Number	ISL9V5036P3-F085	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IGBT 390V 46A 250W TO220AA-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30105 pcs	Data sheet	ISL9V5036P3-F085.pdf
Voltage - Collector Emitter Breakdown (Max)	390V	Vce(on) (Max) @ Vge, Ic	1.6V @ 4V, 10A
Test Condition	300V, 1 kOhm, 5V	Td (on/off) @ 25°C	-/10.8µs
Switching Energy	-	Supplier Device Package	TO-220-3
Series	Automotive, AEC-Q101, EcoSPARK®	Power - Max	250W
Packaging	Tube	Package / Case	TO-220-3
Other Names	ISL9V5036P3_F085 ISL9V5036P3_F085-ND	Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	42 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Logic	IGBT Type	-
Gate Charge	32nC	Detailed Description	IGBT 390V 46A 250W Through Hole TO-220-3
Current - Collector (Ic) (Max)	46A	Base Part Number	ISL9V5036
