H11G1SM

AMI Semiconductor / ON Semiconductor

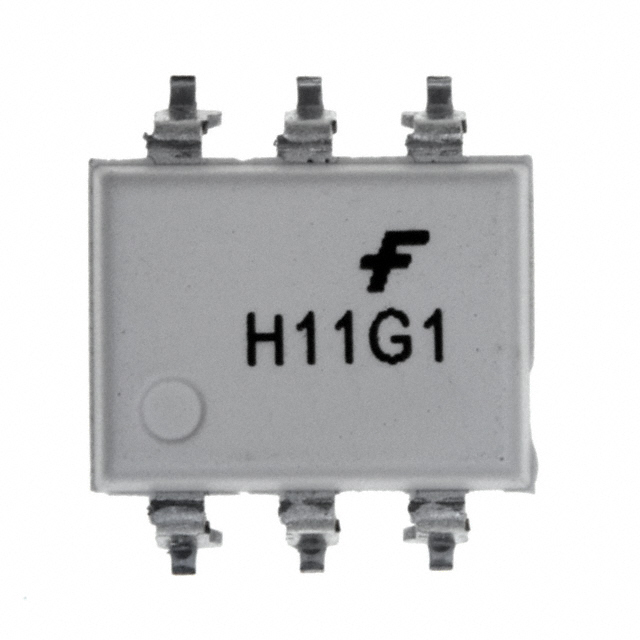

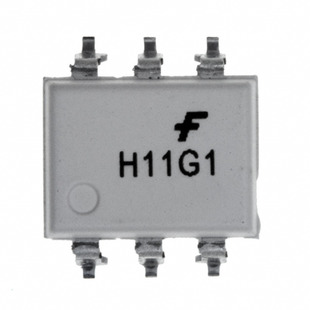

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H11G1SM
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	OPTOISO 4.17KV DARL W/BASE 6SMD
Datasheets:	H11G1SM.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	88669 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 88669 pcs

Reference Price (In US Dollars)

1 pcs: $0.433

10 pcs: $0.336

100 pcs: $0.24

500 pcs: $0.182

1000 pcs: $0.144

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.433

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H11G1SM

Part Number	H11G1SM	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISO 4.17KV DARL W/BASE 6SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	88669 pcs	Data sheet	H11G1SM.pdf
Voltage - Output (Max)	100V	Voltage - Isolation	4170Vrms
Voltage - Forward (Vf) (Typ)	1.3V	Vce Saturation (Max)	1V
Turn On / Turn Off Time (Typ)	5µs, 100µs	Supplier Device Package	6-SMD
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tube	Package / Case	6-SMD, Gull Wing
Output Type	Darlington with Base	Operating Temperature	-40°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Darlington with Base Output 4170Vrms 1 Channel 6-SMD	Current Transfer Ratio (Min)	1000% @ 10mA
Current Transfer Ratio (Max)	-	Current - Output / Channel	-
Current - DC Forward (If) (Max)	60mA
