H11A817CSD

AMI Semiconductor / ON Semiconductor

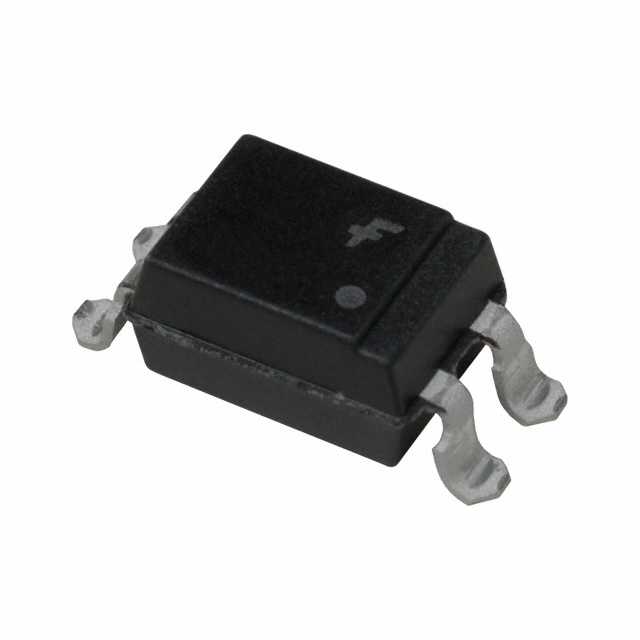

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H11A817CSD
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	OPTOISO 5.3KV TRANSISTOR 4SMD
Datasheets:	H11A817CSD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4250 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4250 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H11A817CSD

Part Number	H11A817CSD	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISO 5.3KV TRANSISTOR 4SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4250 pcs	Data sheet	H11A817CSD.pdf
Voltage - Output (Max)	70V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	200mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-SMD
Series	-	Rise / Fall Time (Typ)	2.4µs, 2.4µs
Packaging	Tape & Reel (TR)	Package / Case	4-SMD, Gull Wing
Output Type	Transistor	Operating Temperature	-55°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 5300Vrms 1 Channel 4-SMD
Current Transfer Ratio (Min)	200% @ 5mA	Current Transfer Ratio (Max)	400% @ 5mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
