H11A1W

AMI Semiconductor / ON Semiconductor

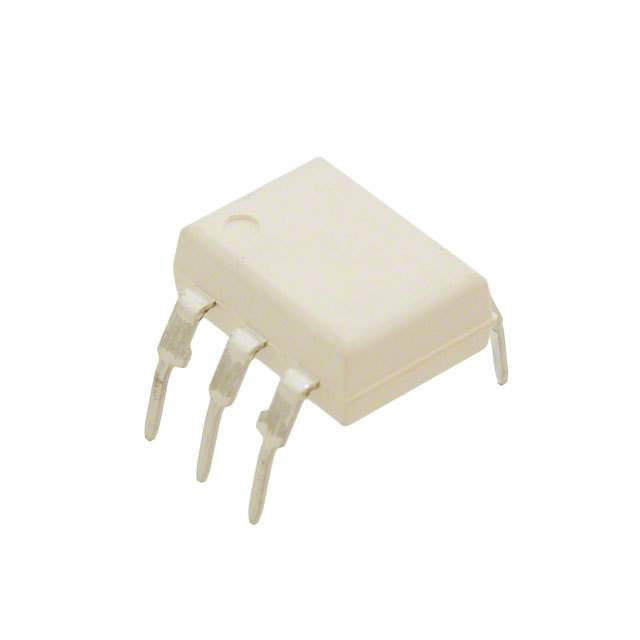

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H11A1W
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	OPTOISO 5.3KV TRANS W/BASE 6DIP
Datasheets:	H11A1W.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5627 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5627 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H11A1W

Part Number	H11A1W	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISO 5.3KV TRANS W/BASE 6DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5627 pcs	Data sheet	H11A1W.pdf
Voltage - Output (Max)	30V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.18V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	2µs, 2µs	Supplier Device Package	6-DIP
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tube	Package / Case	6-DIP (0.400", 10.16mm)
Output Type	Transistor with Base	Operating Temperature	-55°C ~ 100°C
Number of Channels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
Current Transfer Ratio (Min)	50% @ 10mA	Current Transfer Ratio (Max)	-
Current - Output / Channel	-	Current - DC Forward (If) (Max)	100mA
