FGA60N65SMD

AMI Semiconductor / ON Semiconductor

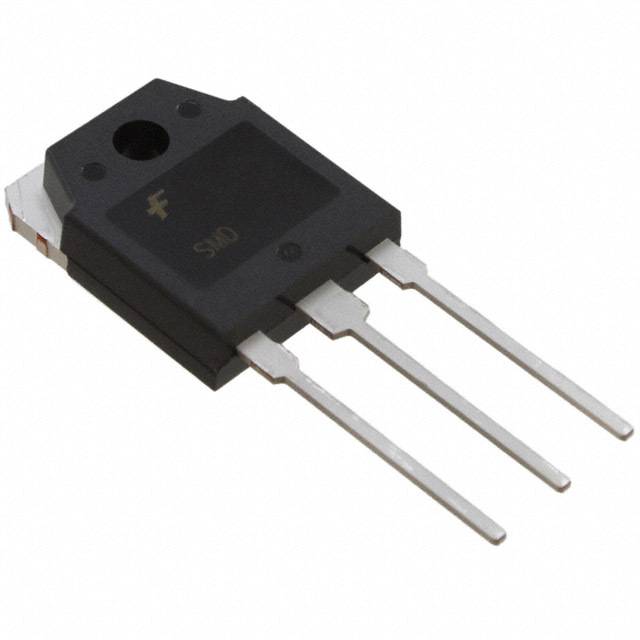

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FGA60N65SMD
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IGBT 650V 120A 600W TO3P
Datasheets:	FGA60N65SMD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18776 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18776 pcs

Reference Price (In US Dollars)

1 pcs: $1.608

10 pcs: $1.444

450 pcs: $1.123

900 pcs: $1.007

1350 pcs: $0.85

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.608

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FGA60N65SMD

Part Number	FGA60N65SMD	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IGBT 650V 120A 600W TO3P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18776 pcs	Data sheet	FGA60N65SMD.pdf
Voltage - Collector Emitter Breakdown (Max)	650V	Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 60A
Test Condition	400V, 60A, 3 Ohm, 15V	Td (on/off) @ 25°C	18ns/104ns
Switching Energy	1.54mJ (on), 450µJ (off)	Supplier Device Package	TO-3PN
Series	-	Reverse Recovery Time (trr)	47ns
Power - Max	600W	Packaging	Tube
Package / Case	TO-3P-3, SC-65-3	Other Names	FGA60N65SMD-ND FGA60N65SMDFS
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	Field Stop
Gate Charge	189nC	Detailed Description	IGBT Field Stop 650V 120A 600W Through Hole TO-3PN
Current - Collector Pulsed (Icm)	180A	Current - Collector (Ic) (Max)	120A
