AMI Semiconductor / ON Semiconductor
| Part Number | FDMT800120DC | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 120V 20A/129A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11725 pcs | Data sheet | FDMT800120DC.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Vgs (Max) | ±20V |

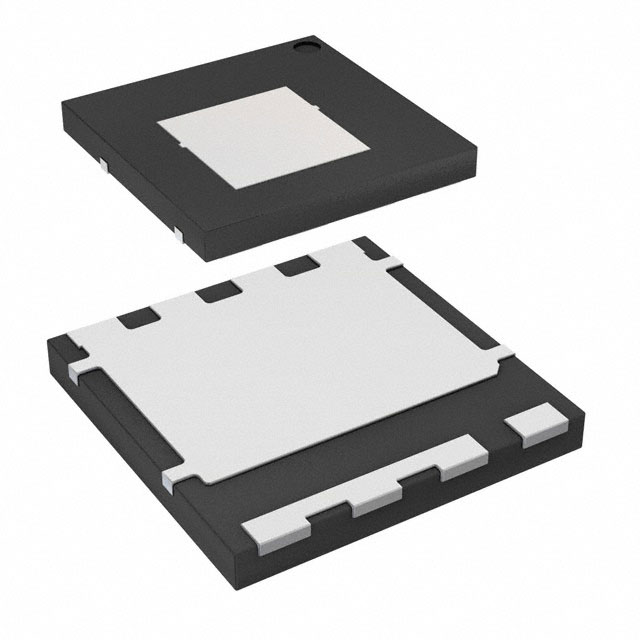

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-Dual Cool™88 |
| Series | Dual Cool™, PowerTrench® | Rds On (Max) @ Id, Vgs | 4.14 mOhm @ 20A, 10V |
| Power Dissipation (Max) | 3.2W (Ta), 156W (Tc) | Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerVDFN | Other Names | FDMT800120DCCT |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 39 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 7850pF @ 60V |
| Gate Charge (Qg) (Max) @ Vgs | 107nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Drain to Source Voltage (Vdss) | 120V | Detailed Description | N-Channel 120V 20A (Ta), 129A (Tc) 3.2W (Ta), 156W (Tc) Surface Mount 8-Dual Cool™88 |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 129A (Tc) |
