AMI Semiconductor / ON Semiconductor

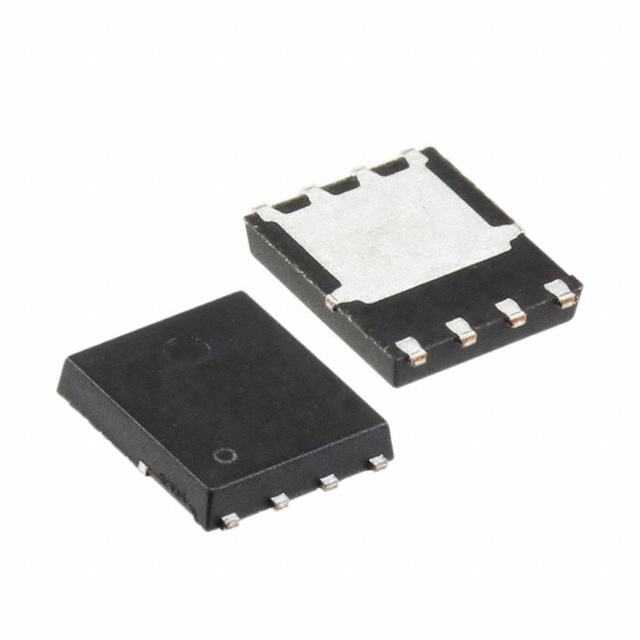

| Part Number | FDMS86369-F085 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 80V 65A POWER56 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 162643 pcs | Data sheet | FDMS86369-F085.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | Power56 |
| Series | Automotive, AEC-Q101, PowerTrench® | Rds On (Max) @ Id, Vgs | 7.5 mOhm @ 65A, 10V |
| Power Dissipation (Max) | 107W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN | Other Names | FDMS86369-F085TR FDMS86369_F085 FDMS86369_F085TR FDMS86369_F085TR-ND |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2470pF @ 40V | Gate Charge (Qg) (Max) @ Vgs | 46nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 80V |
| Detailed Description | N-Channel 80V 65A (Tc) 107W (Tc) Surface Mount Power56 | Current - Continuous Drain (Id) @ 25°C | 65A (Tc) |
