AMI Semiconductor / ON Semiconductor
| Part Number | FDMS7658AS | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 30V POWER56 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 152172 pcs | Data sheet | FDMS7658AS.pdf |
| Vgs(th) (Max) @ Id | 3V @ 1mA | Vgs (Max) | ±20V |

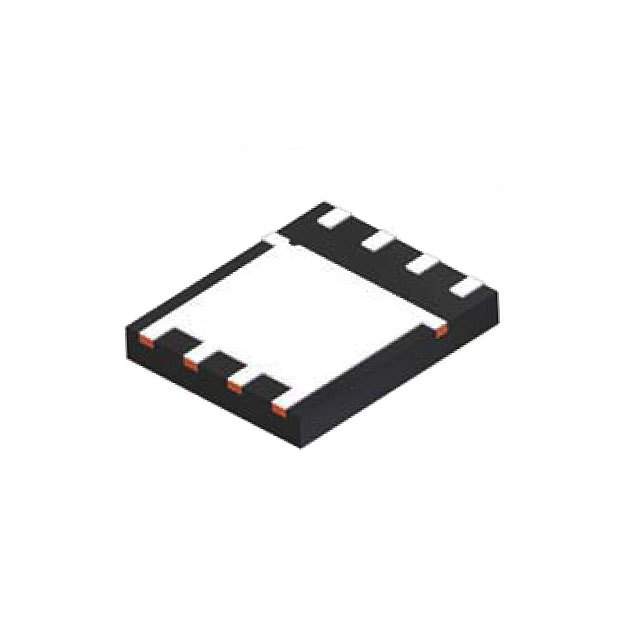

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-PQFN (5x6) |
| Series | PowerTrench®, SyncFET™ | Rds On (Max) @ Id, Vgs | 1.9 mOhm @ 28A, 10V |
| Power Dissipation (Max) | 2.5W (Ta), 89W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN | Other Names | FDMS7658AS-ND FDMS7658ASTR |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 7350pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 109nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 29A (Ta), 70A (Tc) 2.5W (Ta), 89W (Tc) Surface Mount 8-PQFN (5x6) |
| Current - Continuous Drain (Id) @ 25°C | 29A (Ta), 70A (Tc) |
