FDMS003N08C

AMI Semiconductor / ON Semiconductor

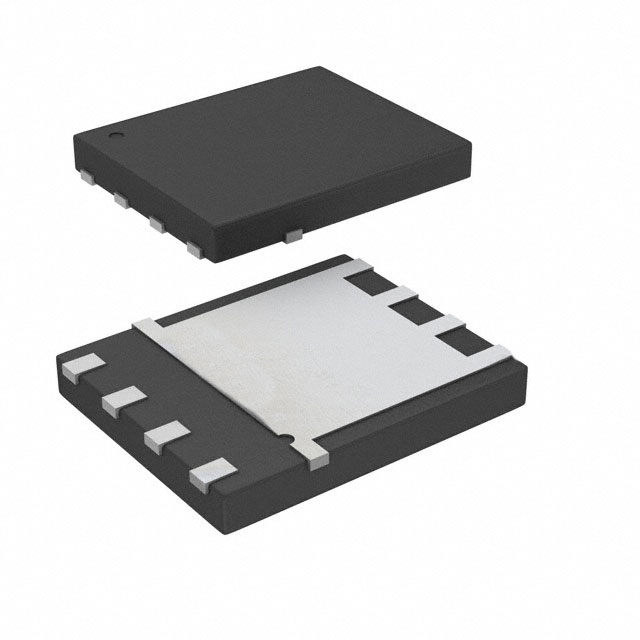

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FDMS003N08C
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	FET ENGR DEV-NOT REL
Datasheets:	FDMS003N08C.pdf
Stock Condition	31672 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31672 pcs

Reference Price (In US Dollars)

3000 pcs: $1.209

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.209

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FDMS003N08C

Part Number	FDMS003N08C	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	FET ENGR DEV-NOT REL	Lead Free Status / RoHS Status
Quantity Available	31672 pcs	Data sheet	FDMS003N08C.pdf
Vgs(th) (Max) @ Id	4V @ 310µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	Power56
Series	PowerTrench®	Rds On (Max) @ Id, Vgs	3.1 mOhm @ 56A, 10V
Power Dissipation (Max)	2.7W (Ta), 125W (Tc)	Package / Case	8-PowerTDFN
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Lead Free Status	Lead free	Input Capacitance (Ciss) (Max) @ Vds	5350pF @ 40V
Gate Charge (Qg) (Max) @ Vgs	73nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Drain to Source Voltage (Vdss)	80V	Detailed Description	N-Channel 80V 22A (Ta), 147A (Tc) 2.7W (Ta), 125W (Tc) Surface Mount Power56
Current - Continuous Drain (Id) @ 25°C	22A (Ta), 147A (Tc)
