FDMF5823DC

AMI Semiconductor / ON Semiconductor

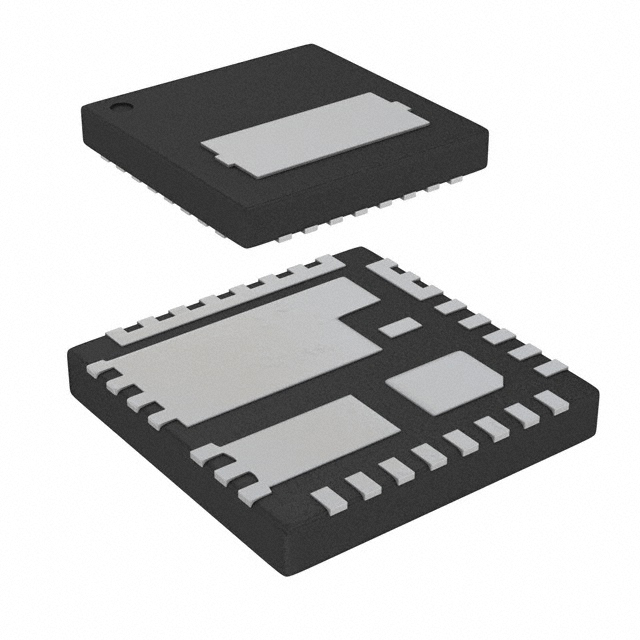

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FDMF5823DC
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC SPS HALF-BRIDGE DRVR 31PQFN
Datasheets:	FDMF5823DC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	60035 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 60035 pcs

Reference Price (In US Dollars)

3000 pcs: $0.64

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.64

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FDMF5823DC

Part Number	FDMF5823DC	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC SPS HALF-BRIDGE DRVR 31PQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60035 pcs	Data sheet	FDMF5823DC.pdf
Voltage - Supply	4.5 V ~ 5.5 V	Voltage - Load	4.5 V ~ 16 V
Technology	UMOS	Supplier Device Package	31-PQFN (5x5)
Series	PowerTrench®, SyncFET™	Rds On (Typ)	470 mOhm LS, 680 mOhm HS
Packaging	Tape & Reel (TR)	Package / Case	31-PowerWFQFN
Output Configuration	Half Bridge	Other Names	FDMF5823DCTR
Operating Temperature	-40°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	19 Weeks
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	PWM	Features	Bootstrap Circuit, Latch Function, Status Flag
Fault Protection	Over Temperature, UVLO	Detailed Description	Half Bridge Driver Synchronous Buck Converters UMOS 31-PQFN (5x5)
Current - Peak Output	-	Current - Output / Channel	55A
Applications	Synchronous Buck Converters
