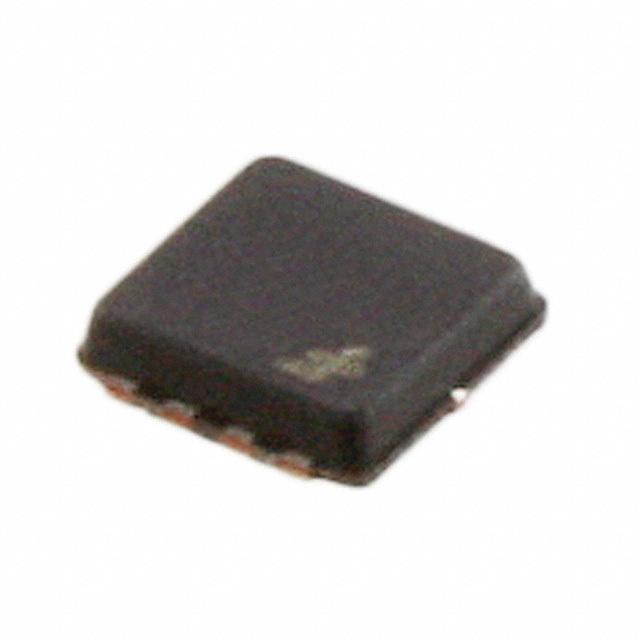

AMI Semiconductor / ON Semiconductor
| Part Number | FDMC86116LZ | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 100V 3.3A 8-MLP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 286294 pcs | Data sheet | FDMC86116LZ.pdf |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-MLP (3.3x3.3) |
| Series | PowerTrench® | Rds On (Max) @ Id, Vgs | 103 mOhm @ 3.3A, 10V |
| Power Dissipation (Max) | 2.3W (Ta), 19W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN | Other Names | FDMC86116LZ-ND FDMC86116LZTR |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 25 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 310pF @ 50V |
| Gate Charge (Qg) (Max) @ Vgs | 6nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 100V | Detailed Description | N-Channel 100V 3.3A (Ta), 7.5A (Tc) 2.3W (Ta), 19W (Tc) Surface Mount 8-MLP (3.3x3.3) |
| Current - Continuous Drain (Id) @ 25°C | 3.3A (Ta), 7.5A (Tc) |
