FDM6296

AMI Semiconductor / ON Semiconductor

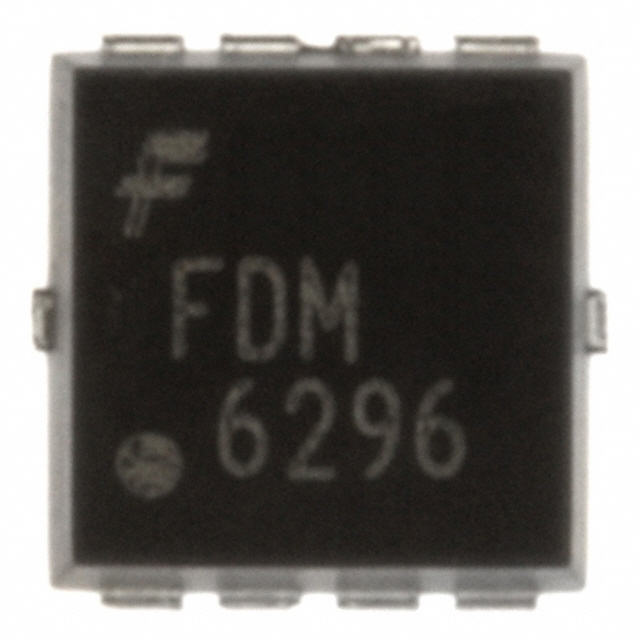

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FDM6296
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MOSFET N-CH 30V 11.5A POWER33
Datasheets:	FDM6296.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4970 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4970 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FDM6296

Part Number	FDM6296	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MOSFET N-CH 30V 11.5A POWER33	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4970 pcs	Data sheet	FDM6296.pdf
Vgs(th) (Max) @ Id	3V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	8-Power33 (3x3)
Series	PowerTrench®	Rds On (Max) @ Id, Vgs	10.5 mOhm @ 11.5A, 10V
Power Dissipation (Max)	2.1W (Ta)	Packaging	Tape & Reel (TR)
Package / Case	8-PowerVDFN	Other Names	FDM6296-ND FDM6296TR
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	2005pF @ 15V	Gate Charge (Qg) (Max) @ Vgs	17nC @ 5V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	30V
Detailed Description	N-Channel 30V 11.5A (Ta) 2.1W (Ta) Surface Mount 8-Power33 (3x3)	Current - Continuous Drain (Id) @ 25°C	11.5A (Ta)
