AMI Semiconductor / ON Semiconductor

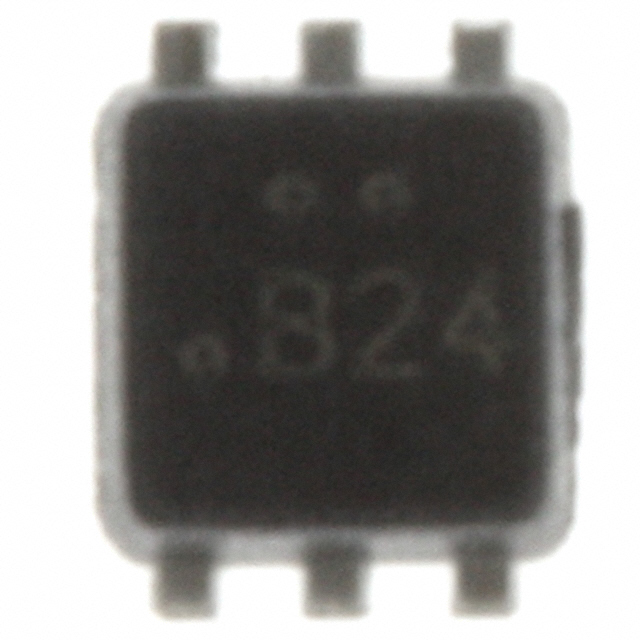

| Part Number | FDJ128N | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 20V 5.5A SC75-6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5926 pcs | Data sheet | FDJ128N.pdf |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | Vgs (Max) | ±12V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | SC75-6 FLMP |
| Series | PowerTrench® | Rds On (Max) @ Id, Vgs | 35 mOhm @ 5.5A, 4.5V |
| Power Dissipation (Max) | 1.6W (Ta) | Packaging | Cut Tape (CT) |
| Package / Case | SC75-6 FLMP | Other Names | FDJ128N_NLCT FDJ128N_NLCT-ND FDJ128NCT |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 543pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 8nC @ 5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | N-Channel 20V 5.5A (Ta) 1.6W (Ta) Surface Mount SC75-6 FLMP | Current - Continuous Drain (Id) @ 25°C | 5.5A (Ta) |
