AMI Semiconductor / ON Semiconductor

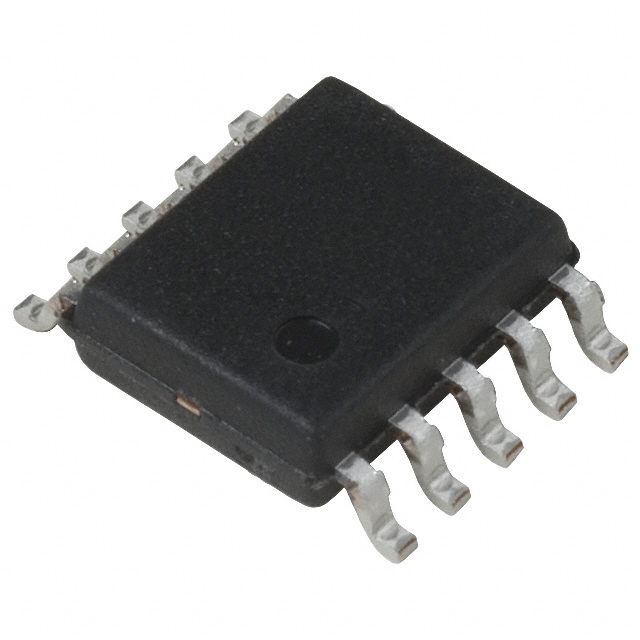

| Part Number | FAN7601GX | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC PWM CTLR GREEN MODE 10SSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3935 pcs | Data sheet | FAN7601GX.pdf |
| Voltage - Supply (Vcc/Vdd) | 8 V ~ 20 V | Voltage - Start Up | 12V |
| Voltage - Breakdown | - | Topology | Flyback |
| Supplier Device Package | 10-SSOP | Series | - |
| Packaging | Cut Tape (CT) | Package / Case | 10-SOP (0.154", 3.90mm Width) |
| Output Isolation | - | Other Names | FAN7601GX_NLCT FAN7601GX_NLCT-ND FAN7601GXCT |
| Operating Temperature | -25°C ~ 125°C (TA) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes | Frequency - Switching | Up to 300kHz |
| Fault Protection | Over Temperature, Over Voltage | Duty Cycle | 95% |
| Detailed Description | Converter Offline Flyback Topology Up to 300kHz 10-SSOP | Control Features | Frequency Control, Soft Start |
| Base Part Number | FAN7601 |
