AMI Semiconductor / ON Semiconductor
| Part Number | FAN5609MPX | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC LED DRVR RGLTR DIM 20MA 16MLP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6325 pcs | Data sheet | FAN5609MPX.pdf |
| Voltage - Supply (Min) | 2.7V | Voltage - Supply (Max) | 5.5V |
| Voltage - Output | - | Type | DC DC Regulator |

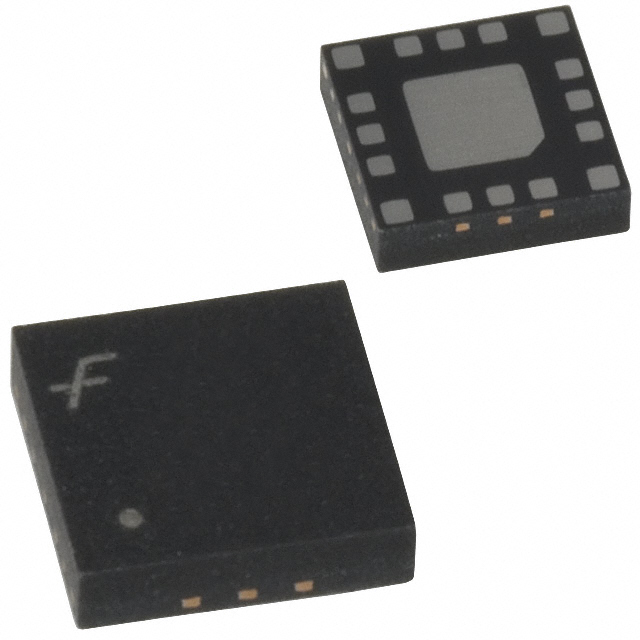

| Topology | Switched Capacitor (Charge Pump) | Supplier Device Package | 16-MLP (4x4) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad | Other Names | FAN5609MPX_NL FAN5609MPX_NLTR FAN5609MPX_NLTR-ND FAN5609MPXTR |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of Outputs | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Yes |
| Frequency | 1MHz | Dimming | PWM |
| Detailed Description | LED Driver IC 4 Output DC DC Regulator Switched Capacitor (Charge Pump) PWM Dimming 20mA 16-MLP (4x4) | Current - Output / Channel | 20mA |
| Base Part Number | FAN5609 | Applications | Backlight |
