ESDR0524PMUTAG

AMI Semiconductor / ON SemiconductorAMI Semiconductor / ON Semiconductor

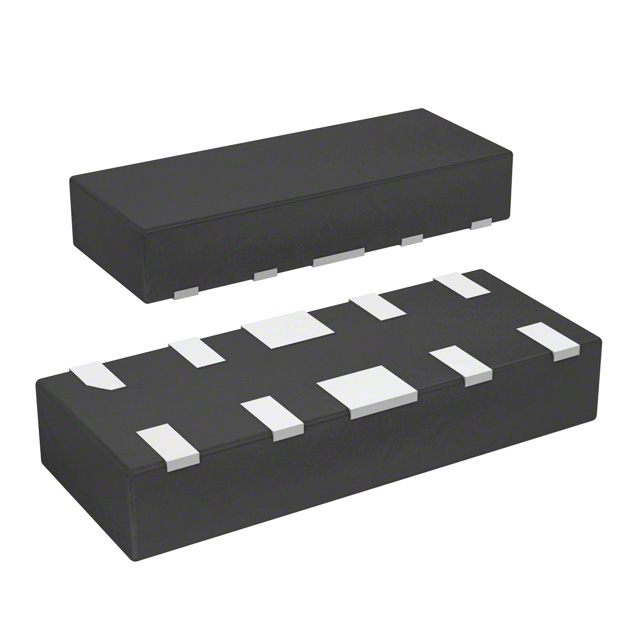

ESDR0524PMUTAG Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ESDR0524PMUTAG
Manufacturer/Brand: AMI Semiconductor / ON Semiconductor
Product description TVS DIODE 5V 15V 10UDFN
Datasheets: ESDR0524PMUTAG.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 198336 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 198336 pcs
Reference Price (In US Dollars)
1 pcs
$0.159
10 pcs
$0.128
100 pcs
$0.087
500 pcs
$0.065
1000 pcs
$0.049
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.159

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ESDR0524PMUTAG

Part Number ESDR0524PMUTAG Manufacturer AMI Semiconductor / ON Semiconductor
Description TVS DIODE 5V 15V 10UDFN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 198336 pcs Data sheet ESDR0524PMUTAG.pdf
Voltage - Reverse Standoff (Typ) 5V (Max) Voltage - Clamping (Max) @ Ipp 15V
Voltage - Breakdown (Min) 5.5V Unidirectional Channels 4
Type Zener Supplier Device Package 10-UDFN (2.5x1)
Series - Power Line Protection No
Power - Peak Pulse - Packaging Original-Reel®
Package / Case 10-UFDFN Other Names ESDR0524PMUTAGOSDKR
Operating Temperature -55°C ~ 125°C (TJ) Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 10 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Capacitance @ Frequency 0.5pF @ 1MHz Base Part Number ESDR0524
Applications HDMI
