EMI7206MUTAG

AMI Semiconductor / ON Semiconductor

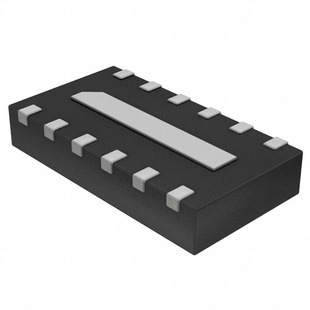

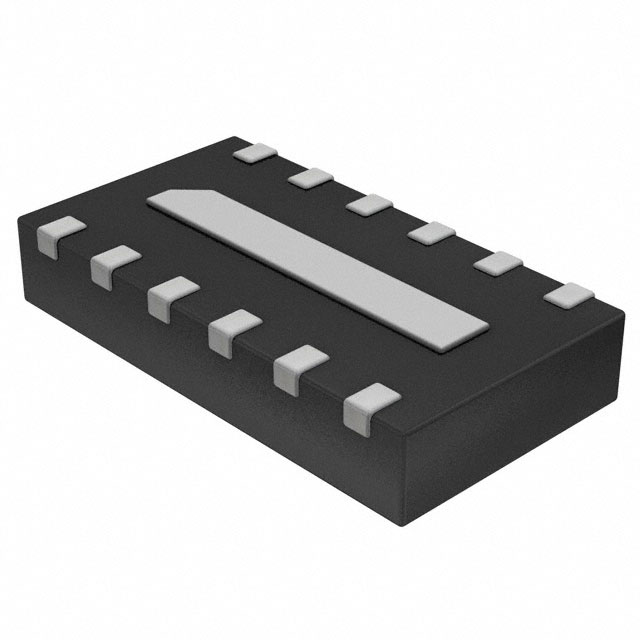

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EMI7206MUTAG
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	FILTER LC(PI) 17NH/12PF ESD SMD
Datasheets:	EMI7206MUTAG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	376883 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 376883 pcs

Reference Price (In US Dollars)

3000 pcs: $0.079

6000 pcs: $0.073

15000 pcs: $0.07

30000 pcs: $0.068

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.079

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EMI7206MUTAG

Part Number	EMI7206MUTAG	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	FILTER LC(PI) 17NH/12PF ESD SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	376883 pcs	Data sheet	EMI7206MUTAG.pdf
Voltage - Rated	-	Values	L = 17nH, C = 12pF
Type	Low Pass	Technology	LC (Pi)
Size / Dimension	0.098" L x 0.053" W (2.50mm x 1.35mm)	Series	EMI720xMU
Resistance - Channel (Ohms)	10	Packaging	Tape & Reel (TR)
Package / Case	12-UFDFN Exposed Pad	Other Names	EMI7206MUTAG-ND EMI7206MUTAGOSTR
Operating Temperature	-40°C ~ 85°C	Number of Channels	6
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.024" (0.60mm)	Filter Order	3rd
ESD Protection	Yes	Detailed Description	LC (Pi) EMI Filter 3rd Order Low Pass 6 Channel L = 17nH, C = 12pF 30mA 12-UFDFN Exposed Pad
Current	30mA	Center / Cutoff Frequency	250MHz (Cutoff)
Attenuation Value	-23dB @ 800MHz ~ 6GHz	Applications	Data Lines for Mobile Devices
