HomeProductsCircuit ProtectionTVS - DiodesCSPESD304G-HST

CSPESD304G-HST

AMI Semiconductor / ON SemiconductorAMI Semiconductor / ON Semiconductor

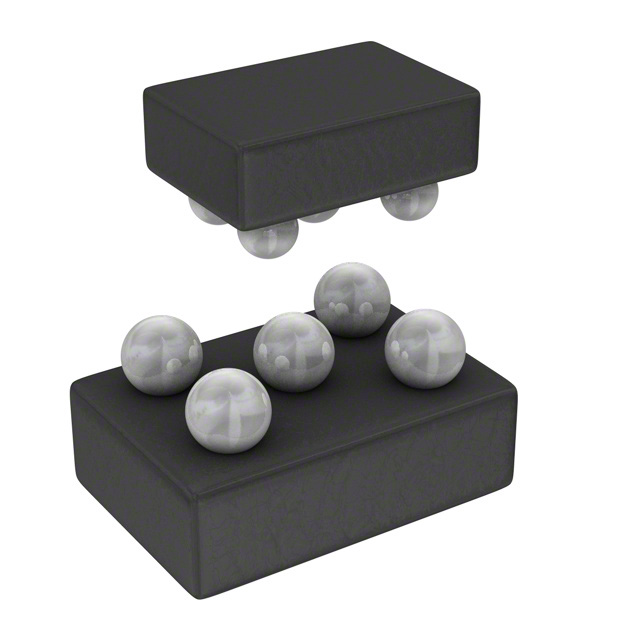

CSPESD304G-HST Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: CSPESD304G-HST
Manufacturer/Brand: AMI Semiconductor / ON Semiconductor
Product description TVS DIODE 15VC 5CSP
Datasheets: CSPESD304G-HST.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4542 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4542 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of CSPESD304G-HST

Part Number CSPESD304G-HST Manufacturer AMI Semiconductor / ON Semiconductor
Description TVS DIODE 15VC 5CSP Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4542 pcs Data sheet CSPESD304G-HST.pdf
Voltage - Reverse Standoff (Typ) - Voltage - Clamping (Max) @ Ipp 15V
Voltage - Breakdown (Min) 5.5V Unidirectional Channels 4
Type Zener Series -
Power Line Protection No Power - Peak Pulse -
Packaging Tape & Reel (TR) Package / Case 5-UFBGA, WLCSP
Operating Temperature -40°C ~ 85°C (TA) Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Current - Peak Pulse (10/1000µs) -
Capacitance @ Frequency - Base Part Number CSPESD304
Applications General Purpose
