CPH5871-TL-W

AMI Semiconductor / ON Semiconductor

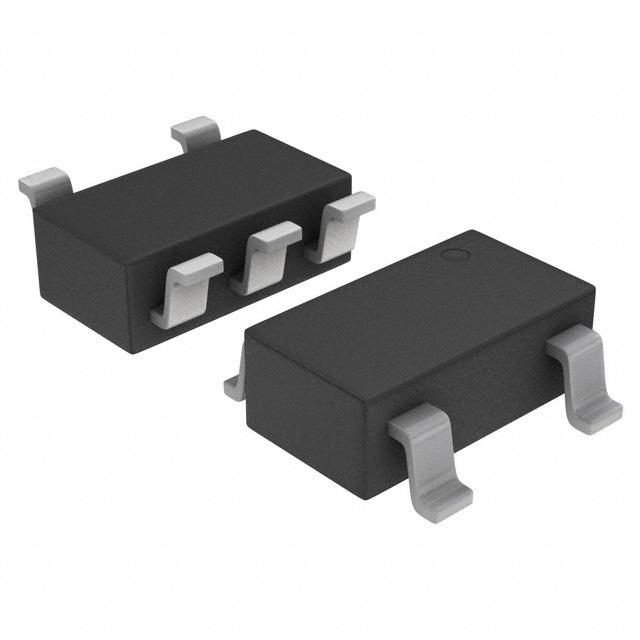

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CPH5871-TL-W
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MOSFET N-CH 30V 3.5A CPH5
Datasheets:	CPH5871-TL-W.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3570 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3570 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CPH5871-TL-W

Part Number	CPH5871-TL-W	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MOSFET N-CH 30V 3.5A CPH5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3570 pcs	Data sheet	CPH5871-TL-W.pdf
Vgs(th) (Max) @ Id	-	Vgs (Max)	±12V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	5-CPH
Series	-	Rds On (Max) @ Id, Vgs	52 mOhm @ 2A, 4.5V
Power Dissipation (Max)	900mW (Ta)	Packaging	Tape & Reel (TR)
Package / Case	SC-74A, SOT-753	Other Names	CPH5871-TL-H CPH5871-TL-H-ND
Operating Temperature	-55°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	430pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	4.7nC @ 4.5V
FET Type	N-Channel	FET Feature	Schottky Diode (Isolated)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V	Drain to Source Voltage (Vdss)	30V
Detailed Description	N-Channel 30V 3.5A (Ta) 900mW (Ta) Surface Mount 5-CPH	Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
