CAT3604VHV4-GT2

AMI Semiconductor / ON Semiconductor

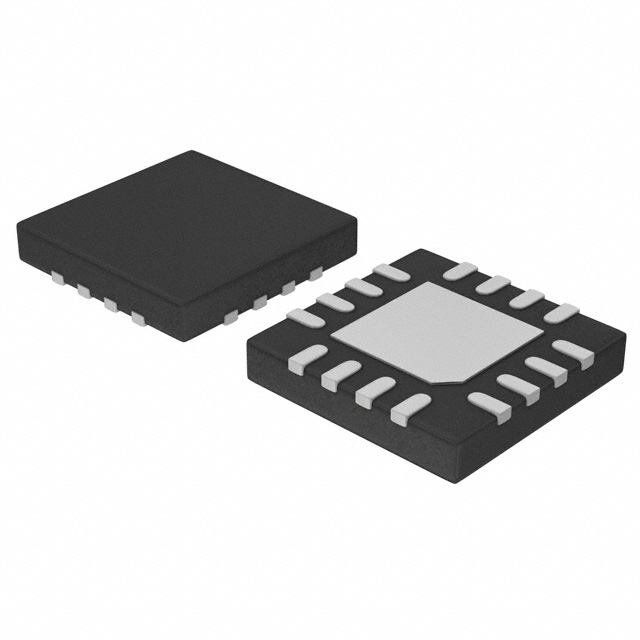

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CAT3604VHV4-GT2
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC LED DRIVER RGLTR DIM 16TQFN
Datasheets:	CAT3604VHV4-GT2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	185875 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 185875 pcs

Reference Price (In US Dollars)

2000 pcs: $0.182

6000 pcs: $0.173

10000 pcs: $0.166

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.182

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CAT3604VHV4-GT2

Part Number	CAT3604VHV4-GT2	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC LED DRIVER RGLTR DIM 16TQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	185875 pcs	Data sheet	CAT3604VHV4-GT2.pdf
Voltage - Supply (Min)	2.5V	Voltage - Supply (Max)	5.5V
Voltage - Output	-	Type	DC DC Regulator
Topology	Switched Capacitor (Charge Pump)	Supplier Device Package	16-TQFN (4x4)
Series	-	Packaging	Tape & Reel (TR)
Package / Case	16-WQFN Exposed Pad	Other Names	CAT3604VHV4-GT2TR CAT3604VHV4GT2
Operating Temperature	-40°C ~ 85°C (TA)	Number of Outputs	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency	1MHz
Dimming	PWM	Detailed Description	LED Driver IC 4 Output DC DC Regulator Switched Capacitor (Charge Pump) PWM Dimming 25mA 16-TQFN (4x4)
Current - Output / Channel	25mA	Base Part Number	CAT3604
Applications	Backlight
