Molex Connector Corporation
| Part Number | 84501-0001 | Manufacturer | Molex Connector Corporation |
|---|---|---|---|
| Description | CONN PLUG W/PIN SEALED 14POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4464 pcs | Data sheet | 1.84501-0001.pdf2.84501-0001.pdf3.84501-0001.pdf |
| Wire Gauge or Range - AWG | 16 | Usage | Unshielded |
| Type Attributes | IP67 - Dust Tight, Waterproof | Type | For Male Pins |
| Stacking Direction | Crimp | Shield Termination | Circular |
| Shell Material, Finish | - | Shell Finish | Polybutylene Terephthalate (PBT), Glass Filled |
| Series | Extra Rugged Circular (XRC™) | RoHS Status | Tray |
| Plug/Mating Plug Diameter | Black, Blue | Other Names | 084501-0001 084501-0001-E 0845010001 0845010001-E 84501-0001-E 845010001 845010001-E SD-84501-001 WM1062 |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 14 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Manufacturer Part Number | 84501-0001 |
| Large Diameter Supplied | 18-14 | Insert Material | - |
| Includes | - | Features | Coupling Nut |

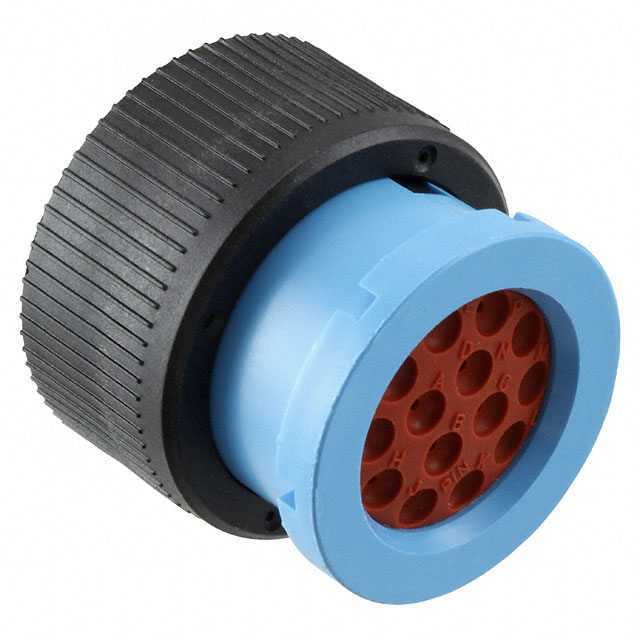

| Expanded Description | 14 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut | Description | CONN PLUG W/PIN SEALED 14POS |
| Current - Max/Contact | Bayonet Lock | Coupling Nut Material, Plating | 1.626" (41.30mm) |
| Coupling Nut Diameter | - | Contact Shape | - |
| Contact Material | Keyed | Connector Type | Plug Housing |
| Body Material | - |
