AMI Semiconductor / ON Semiconductor

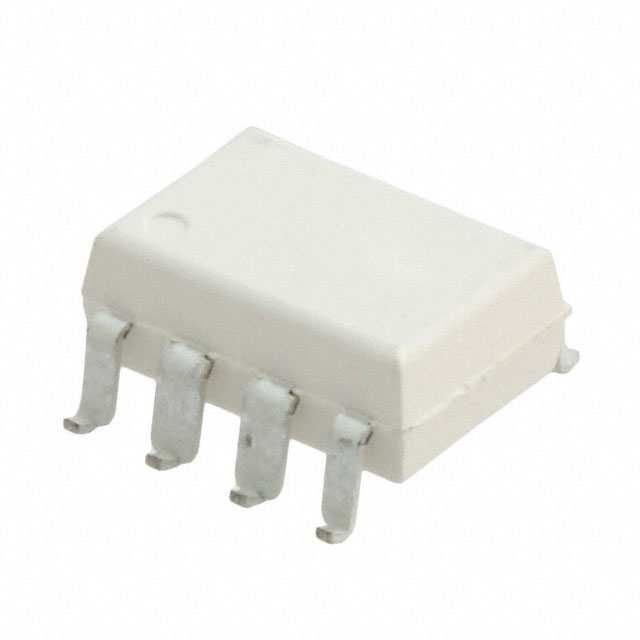

| Part Number | 6N137SVM | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 5KV 1CH OPEN COLL 8SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65153 pcs | Data sheet | 6N137SVM.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.45V | Supplier Device Package | 8-SMD |
| Series | - | Rise / Fall Time (Typ) | 30ns, 10ns |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns | Packaging | Tube |
| Package / Case | 8-SMD, Gull Wing | Output Type | Open Collector |
| Other Names | 6N137SVMCT 6N137SVMCT-ND 6N137SVMTR 6N137SVMTR-ND |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 1/0 | Input Type | DC |
| Detailed Description | Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 1 Channel 10kV/µs (Typ) CMTI 8-SMD | Data Rate | 10Mbps |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 50mA |
| Common Mode Transient Immunity (Min) | 10kV/µs (Typ) |
