2SD1060R-1EX

AMI Semiconductor / ON Semiconductor

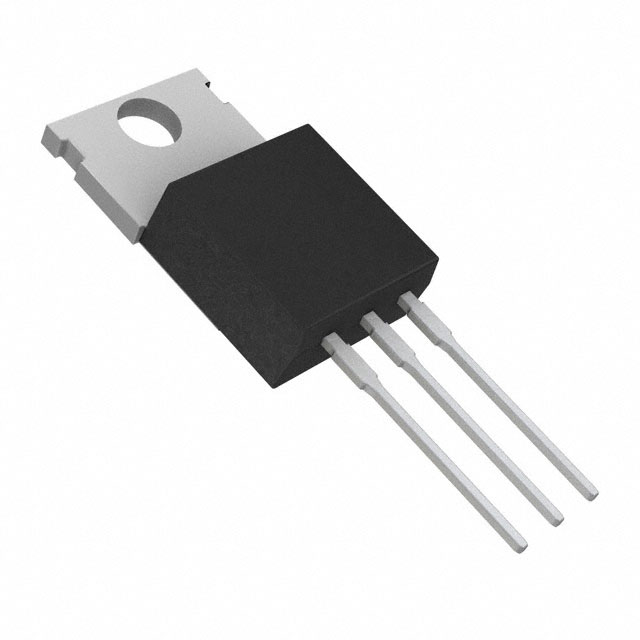

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2SD1060R-1EX
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	TRANS NPN 50V 5A
Datasheets:	2SD1060R-1EX.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	81498 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 81498 pcs

Reference Price (In US Dollars)

300 pcs: $0.398

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.398

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2SD1060R-1EX

Part Number	2SD1060R-1EX	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	TRANS NPN 50V 5A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	81498 pcs	Data sheet	2SD1060R-1EX.pdf
Voltage - Collector Emitter Breakdown (Max)	50V	Vce Saturation (Max) @ Ib, Ic	300mV @ 300mA, 3A
Transistor Type	NPN	Supplier Device Package	TO-220-3
Series	-	Power - Max	1.75W
Packaging	Tube	Package / Case	TO-220-3
Operating Temperature	150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	30MHz	Detailed Description	Bipolar (BJT) Transistor NPN 50V 5A 30MHz 1.75W Through Hole TO-220-3
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 1A, 2V	Current - Collector Cutoff (Max)	100µA (ICBO)
Current - Collector (Ic) (Max)	5A
