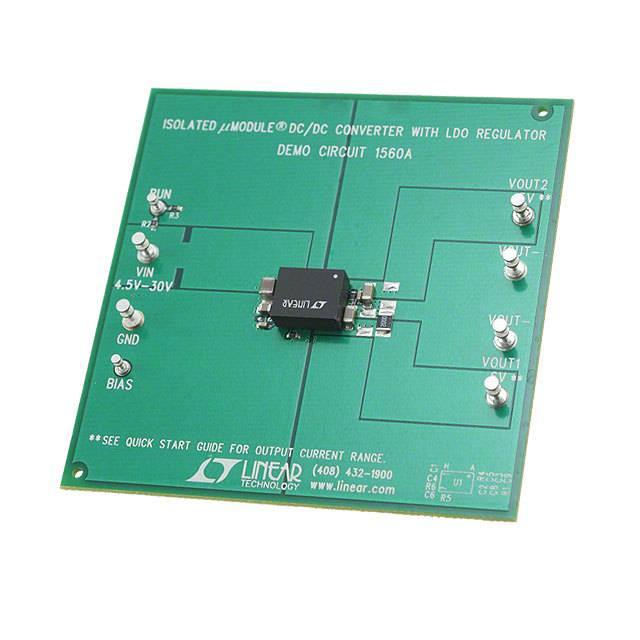

DC1560A

ADI (Analog Devices, Inc.)

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DC1560A
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	BOARD EVAL FOR LTM8048
Datasheets:	1.DC1560A.pdf 2.DC1560A.pdf 3.DC1560A.pdf 4.DC1560A.pdf
RoHs Status	Not applicable / Not applicable
Stock Condition	1227 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1227 pcs

Reference Price (In US Dollars)

1 pcs: $23.95

100 pcs: $23.598

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$23.95

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DC1560A

Part Number	DC1560A	Manufacturer	ADI (Analog Devices, Inc.)
Description	BOARD EVAL FOR LTM8048	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	1227 pcs	Data sheet	1.DC1560A.pdf 2.DC1560A.pdf 3.DC1560A.pdf 4.DC1560A.pdf
Voltage - Output	5V, 6V	Voltage - Input	4.5 V ~ 30 V
Utilized IC / Part	LTM8048	Supplied Contents	Board(s)
Series	µModule®	Regulator Topology	Flyback
Outputs and Type	2, Isolated	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Main Purpose	DC/DC, Step Down with LDO
Lead Free Status / RoHS Status	Not applicable / Not applicable	Frequency - Switching	-
Detailed Description	LTM8048 µModule® DC/DC, Step Down with LDO 2, Isolated Outputs Evaluation Board	Current - Output	300mA
Board Type	Fully Populated	Base Part Number	LTM8048
