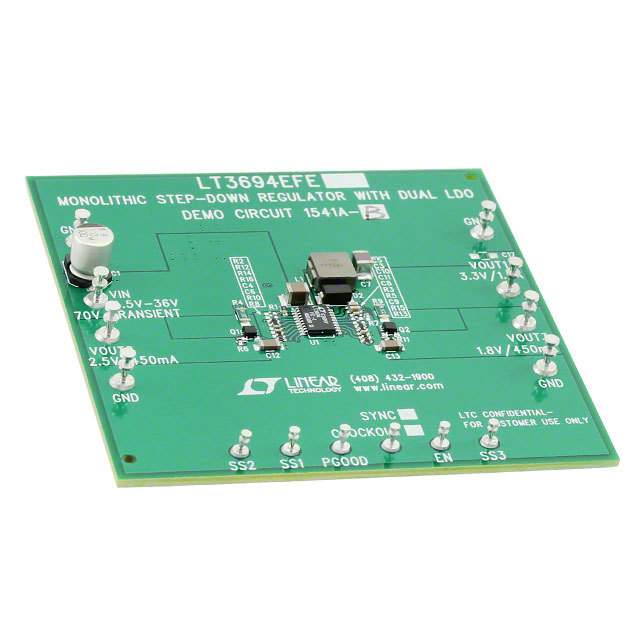

DC1541A-B

ADI (Analog Devices, Inc.)

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DC1541A-B
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	BOARD EVAL FOR LT3694EFE
Datasheets:	1.DC1541A-B.pdf 2.DC1541A-B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	685 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 685 pcs

Reference Price (In US Dollars)

1 pcs: $46.058

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$46.058

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DC1541A-B

Part Number	DC1541A-B	Manufacturer	ADI (Analog Devices, Inc.)
Description	BOARD EVAL FOR LT3694EFE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	685 pcs	Data sheet	1.DC1541A-B.pdf 2.DC1541A-B.pdf
Voltage - Output	1.8V, 2.5V, 3.3V	Voltage - Input	4.5 V ~ 36 V
Utilized IC / Part	LT3694-1	Supplied Contents	Board(s)
Series	-	Regulator Topology	Buck
Outputs and Type	3, Non-Isolated	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Main Purpose	DC/DC, Step Down with LDO
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	800kHz
Detailed Description	LT3694-1 - DC/DC, Step Down with LDO 3, Non-Isolated Outputs Evaluation Board	Current - Output	1.7A, 450mA, 450mA
Board Type	Fully Populated	Base Part Number	LT3694
