ADUM7223ACCZ-RL7

ADI (Analog Devices, Inc.)

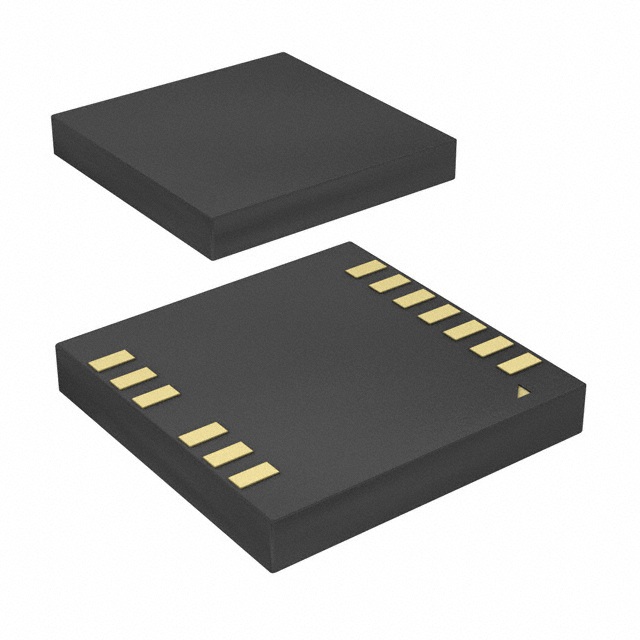

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADUM7223ACCZ-RL7
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	DGTL ISO 2.5KV GATE DRIVER 13LGA
Datasheets:	ADUM7223ACCZ-RL7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18870 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 18870 pcs

Reference Price (In US Dollars)

1 pcs: $1.774

10 pcs: $1.594

100 pcs: $1.306

500 pcs: $1.112

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.774

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADUM7223ACCZ-RL7

Part Number	ADUM7223ACCZ-RL7	Manufacturer	ADI (Analog Devices, Inc.)
Description	DGTL ISO 2.5KV GATE DRIVER 13LGA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18870 pcs	Data sheet	ADUM7223ACCZ-RL7.pdf
Voltage - Supply	4.5 V ~ 18 V	Voltage - Isolation	2500Vrms
Voltage - Forward (Vf) (Typ)	-	Technology	Magnetic Coupling
Supplier Device Package	13-LGA (5x5)	Series	iCoupler®
Rise / Fall Time (Typ)	12ns, 12ns	Pulse Width Distortion (Max)	-
Propagation Delay tpLH / tpHL (Max)	68ns, 68ns	Packaging	Original-Reel®
Package / Case	13-VFLGA	Other Names	ADUM7223ACCZ-RL7DKR
Operating Temperature	-40°C ~ 125°C	Number of Channels	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	4.5A Gate Driver Magnetic Coupling 2500Vrms 2 Channel 13-LGA (5x5)	Current - Peak Output	4.5A
Current - Output High, Low	-	Common Mode Transient Immunity (Min)	50kV/µs
Base Part Number	ADUM7223	Approvals	-
