ADUM1420BRWZ

ADI (Analog Devices, Inc.)

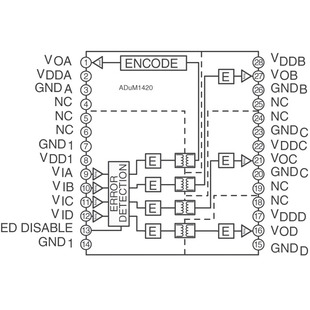

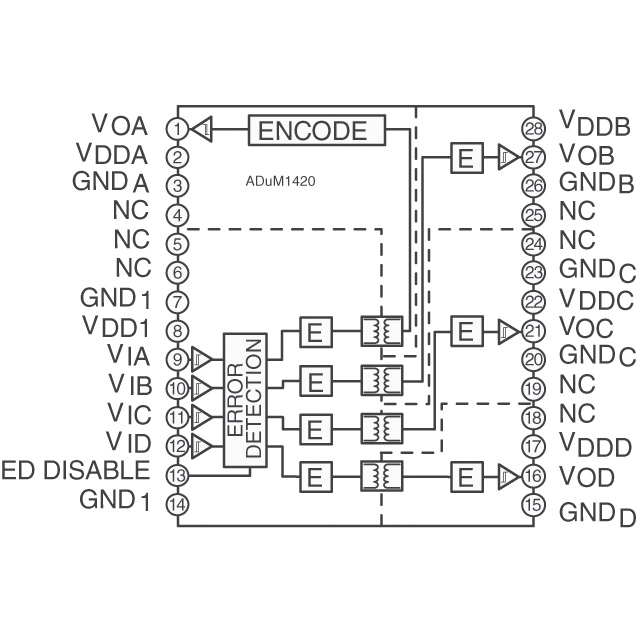

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADUM1420BRWZ
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	DGTL ISO 1.667KV GATE DVR 28SOIC
Datasheets:	ADUM1420BRWZ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4062 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4062 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADUM1420BRWZ

Part Number	ADUM1420BRWZ	Manufacturer	ADI (Analog Devices, Inc.)
Description	DGTL ISO 1.667KV GATE DVR 28SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4062 pcs	Data sheet	ADUM1420BRWZ.pdf
Voltage - Supply	12 V ~ 18 V	Voltage - Isolation	1667Vrms
Voltage - Forward (Vf) (Typ)	-	Technology	Magnetic Coupling
Supplier Device Package	28-SOIC	Series	iCoupler®
Rise / Fall Time (Typ)	25ns, 25ns (Max)	Pulse Width Distortion (Max)	8ns
Propagation Delay tpLH / tpHL (Max)	128ns, 128ns	Packaging	Tube
Package / Case	28-SOIC (0.295", 7.50mm Width)	Operating Temperature	-40°C ~ 105°C
Number of Channels	4	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	100mA Gate Driver Magnetic Coupling 1667Vrms 4 Channel 28-SOIC	Current - Peak Output	100mA
Current - Output High, Low	-	Common Mode Transient Immunity (Min)	75kV/µs
Base Part Number	ADUM1420	Approvals	-
