ADRF5020BCCZN

ADI (Analog Devices, Inc.)

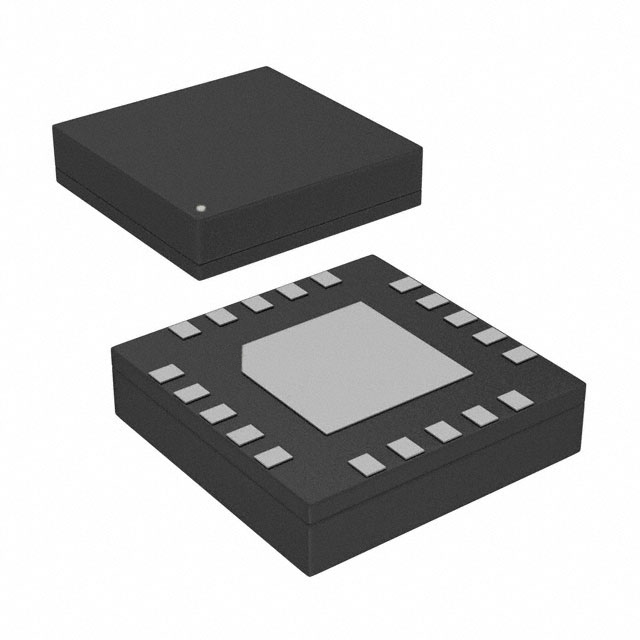

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADRF5020BCCZN
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	HIGH ISOLATION SPDT, 30GHZ, FAST
Datasheets:	ADRF5020BCCZN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	872 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 872 pcs

Reference Price (In US Dollars)

1 pcs: $34.253

10 pcs: $32.294

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$34.253

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADRF5020BCCZN

Part Number	ADRF5020BCCZN	Manufacturer	ADI (Analog Devices, Inc.)
Description	HIGH ISOLATION SPDT, 30GHZ, FAST	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	872 pcs	Data sheet	ADRF5020BCCZN.pdf
Voltage - Supply	5.5V	Topology	Absorptive
Test Frequency	20GHz	Supplier Device Package	20-LGA (3x3)
Series	-	RF Type	VSAT
Packaging	Strip	Package / Case	20-WFLGA Exposed Pad
P1dB	28dBm	Operating Temperature	-40°C ~ 85°C
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Isolation	65dB
Insertion Loss	2dB	Impedance	50 Ohm
IIP3	52dBm	Frequency Range	100MHz ~ 30GHz
Features	-	Detailed Description	RF Switch IC VSAT SPDT 30GHz 50 Ohm 20-LGA (3x3)
Circuit	SPDT	Base Part Number	ADRF5020
