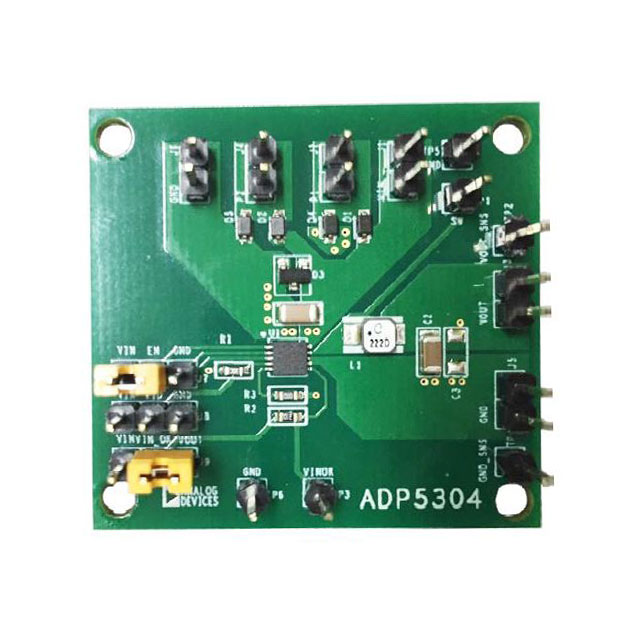

ADP5304-EVALZ

ADI (Analog Devices, Inc.)

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADP5304-EVALZ
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	EVAL BOARD FOR ADP5304
Datasheets:	1.ADP5304-EVALZ.pdf 2.ADP5304-EVALZ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1893 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1893 pcs

Reference Price (In US Dollars)

1 pcs: $19.915

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$19.915

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADP5304-EVALZ

Part Number	ADP5304-EVALZ	Manufacturer	ADI (Analog Devices, Inc.)
Description	EVAL BOARD FOR ADP5304	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1893 pcs	Data sheet	1.ADP5304-EVALZ.pdf 2.ADP5304-EVALZ.pdf
Voltage - Output	1.8V	Voltage - Input	2.15 V ~ 6.5 V
Utilized IC / Part	ADP5304	Supplied Contents	Board(s)
Series	-	Regulator Topology	Buck
Outputs and Type	1, Non-Isolated	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	-	Detailed Description	ADP5304 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	50mA	Board Type	Fully Populated
Base Part Number	ADP5304
