ADG858BCPZ-REEL

ADI (Analog Devices, Inc.)

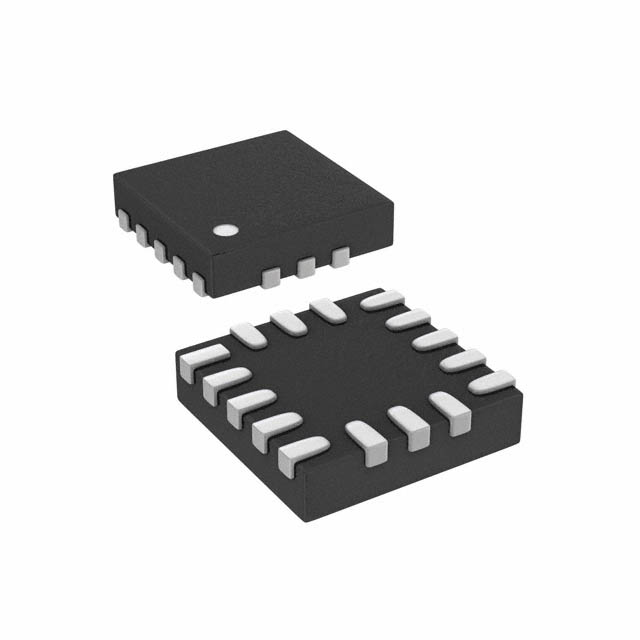

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADG858BCPZ-REEL
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	IC SWITCH QUAD SPDT 16LFCSP
Datasheets:	ADG858BCPZ-REEL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4563 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4563 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADG858BCPZ-REEL

Part Number	ADG858BCPZ-REEL	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC SWITCH QUAD SPDT 16LFCSP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4563 pcs	Data sheet	ADG858BCPZ-REEL.pdf
Voltage - Supply, Single (V+)	1.8 V ~ 5.5 V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	27ns, 12ns	Switch Circuit	SPDT
Supplier Device Package	16-LFCSP-UQ (2.1x2.1)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	16-UFQFN, CSP
Operating Temperature	-40°C ~ 85°C (TA)	On-State Resistance (Max)	720 mOhm
Number of Circuits	2	Multiplexer/Demultiplexer Circuit	2:2
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	2 Circuit IC Switch 2:2 720 mOhm 16-LFCSP-UQ (2.1x2.1)	Current - Leakage (IS(off)) (Max)	10pA (Typ)
Crosstalk	-85dB @ 100kHz	Charge Injection	45pC
Channel-to-Channel Matching (ΔRon)	40 mOhm	Channel Capacitance (CS(off), CD(off))	25pF
Base Part Number	ADG858	-3db Bandwidth	70MHz
