ADI (Analog Devices, Inc.)

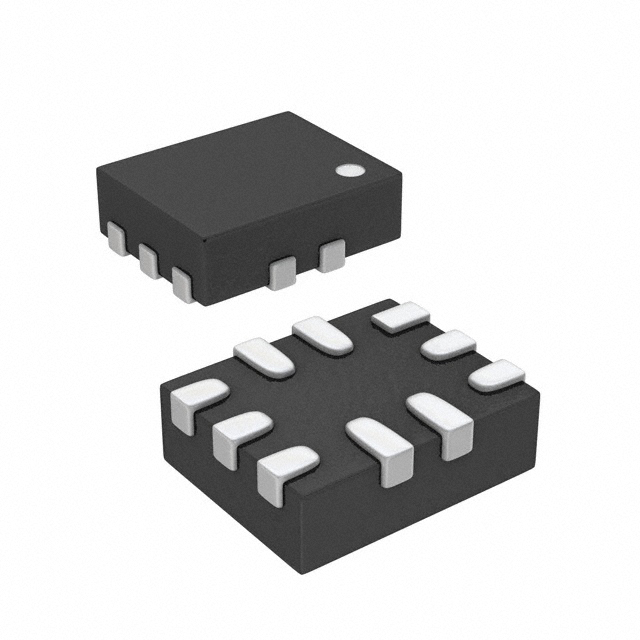

| Part Number | ADG824BCPZ-REEL7 | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC SWITCH DUAL SPDT 10LFCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93573 pcs | Data sheet | ADG824BCPZ-REEL7.pdf |
| Voltage - Supply, Single (V+) | 1.65 V ~ 3.6 V | Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 9.5ns, 7.7ns | Switch Circuit | SPDT |
| Supplier Device Package | 10-LFCSP-UQ (1.6x1.3) | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 10-UFQFN, CSP |
| Other Names | ADG824BCPZ-REEL7TR ADG824BCPZREEL7 |
Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 800 mOhm | Number of Circuits | 2 |
| Multiplexer/Demultiplexer Circuit | 2:1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2 Circuit IC Switch 2:1 800 mOhm 10-LFCSP-UQ (1.6x1.3) | Current - Leakage (IS(off)) (Max) | 200pA (Typ) |
| Crosstalk | -90dB @ 100kHz | Charge Injection | 27pC |
| Channel-to-Channel Matching (ΔRon) | 3 mOhm | Channel Capacitance (CS(off), CD(off)) | 25pF |
| Base Part Number | ADG824 | -3db Bandwidth | 90MHz |
