ADI (Analog Devices, Inc.)
| Part Number | ADG1412YCPZ-REEL7 | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC SWITCH QUAD SPST 16LFCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14321 pcs | Data sheet | ADG1412YCPZ-REEL7.pdf |
| Voltage - Supply, Single (V+) | 5 V ~ 16.5 V | Voltage - Supply, Dual (V±) | ±4.5 V ~ 16.5 V |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns | Switch Circuit | SPST - NO |
| Supplier Device Package | 16-LFCSP-VQ (4x4) | Series | - |

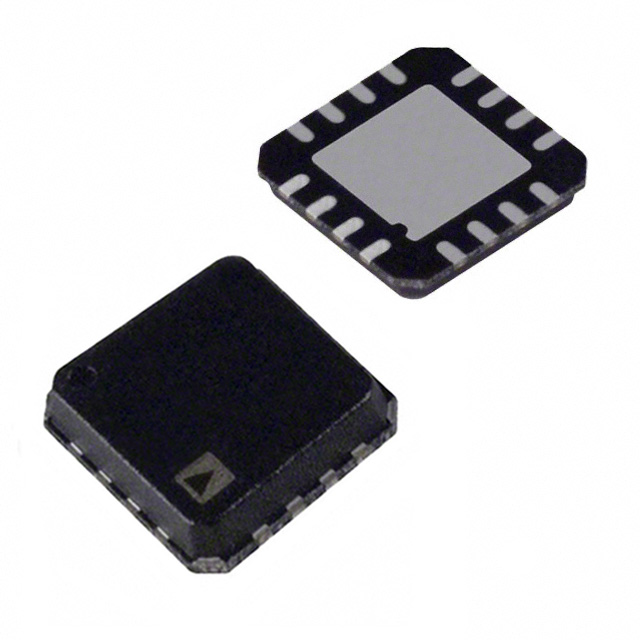

| Packaging | Original-Reel® | Package / Case | 16-VQFN Exposed Pad, CSP |
| Other Names | ADG1412YCPZ-REEL7DKR | Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 1.8 Ohm | Number of Circuits | 4 |
| Multiplexer/Demultiplexer Circuit | 1:1 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 23 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 4 Circuit IC Switch 1:1 1.8 Ohm 16-LFCSP-VQ (4x4) | Current - Leakage (IS(off)) (Max) | 550pA |
| Crosstalk | -100dB @ 1MHz | Charge Injection | -20pC |
| Channel-to-Channel Matching (ΔRon) | 100 mOhm | Channel Capacitance (CS(off), CD(off)) | 23pF, 23pF |
| Base Part Number | ADG1412 | -3db Bandwidth | 170MHz |
