AD9736BBC

ADI (Analog Devices, Inc.)

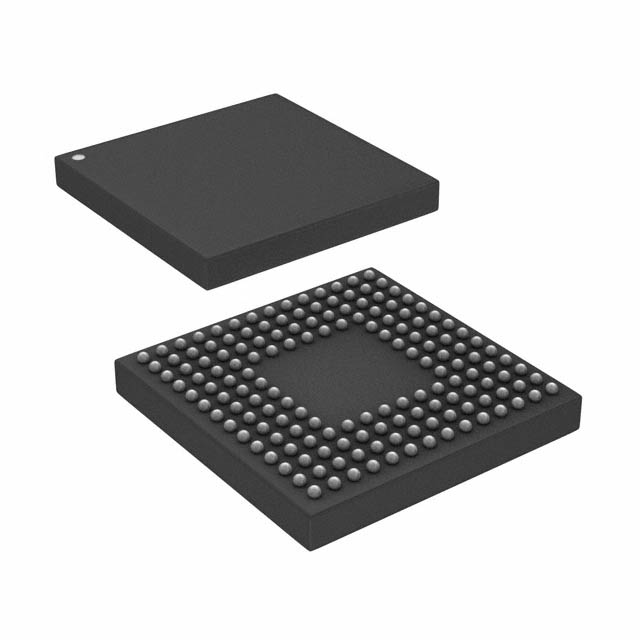

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AD9736BBC
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	IC DAC 14BIT 1.2GSPS 160CSBGA
Datasheets:	AD9736BBC.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	1272 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1272 pcs

Reference Price (In US Dollars)

1 pcs: $24.893

10 pcs: $23.649

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$24.893

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AD9736BBC

Part Number	AD9736BBC	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC DAC 14BIT 1.2GSPS 160CSBGA	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	1272 pcs	Data sheet	AD9736BBC.pdf
Voltage - Supply, Digital	1.7 V ~ 1.9 V, 3.13 V ~ 3.47 V	Voltage - Supply, Analog	1.7 V ~ 1.9 V, 3.13 V ~ 3.47 V
Supplier Device Package	160-CSPBGA (12x12)	Settling Time	-
Series	-	Reference Type	External, Internal
Packaging	Tray	Package / Case	160-LFBGA, CSPBGA
Output Type	Current - Unbuffered	Operating Temperature	-40°C ~ 85°C
Number of D/A Converters	1	Number of Bits	14
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	4 (72 Hours)
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
INL/DNL (LSB)	±1, ±0.6	Differential Output	Yes
Detailed Description	14 Bit Digital to Analog Converter 1 160-CSPBGA (12x12)	Data Interface	LVDS - Parallel
Base Part Number	AD9736	Architecture	Oversampling Interpolating DAC
