AD9689BBPZRL-2600

ADI (Analog Devices, Inc.)

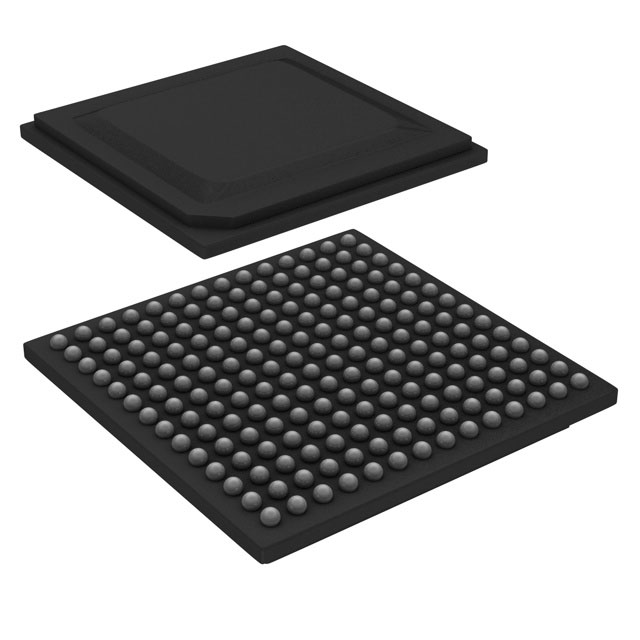

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AD9689BBPZRL-2600
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	DUAL 14 BIT 2.6GSPS ADC
Datasheets:	AD9689BBPZRL-2600.pdf
RoHs Status	RoHS Compliant
Stock Condition	81 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 81 pcs

Reference Price (In US Dollars)

1500 pcs: $417.995

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$417.995

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AD9689BBPZRL-2600

Part Number	AD9689BBPZRL-2600	Manufacturer	ADI (Analog Devices, Inc.)
Description	DUAL 14 BIT 2.6GSPS ADC	Lead Free Status / RoHS Status	RoHS Compliant
Quantity Available	81 pcs	Data sheet	AD9689BBPZRL-2600.pdf
Voltage - Supply, Digital	0.95V ~ 1V, 1.85V ~ 1.95V	Voltage - Supply, Analog	0.95V ~ 1V, 1.85V ~ 1.95V, 2.44V ~ 2.56V
Supplier Device Package	196-BGA-ED (12x12)	Series	-
Sampling Rate (Per Second)	2.6G	RoHS Status	RoHS Compliant
Reference Type	External, Internal	Ratio - S/H:ADC	1:1
Package / Case	196-LFBGA	Operating Temperature	-40°C ~ 85°C
Number of Inputs	2	Number of Bits	14
Number of A/D Converters	2	Manufacturer Standard Lead Time	7 Weeks
Input Type	Differential	Detailed Description	14 Bit Analog to Digital Converter 2 Input 2 Pipelined 196-BGA-ED (12x12)
Data Interface	JESD204B	Configuration	S/H-ADC
Base Part Number	AD9689	Architecture	Pipelined
