AD815ARBZ-24-REEL

ADI (Analog Devices, Inc.)

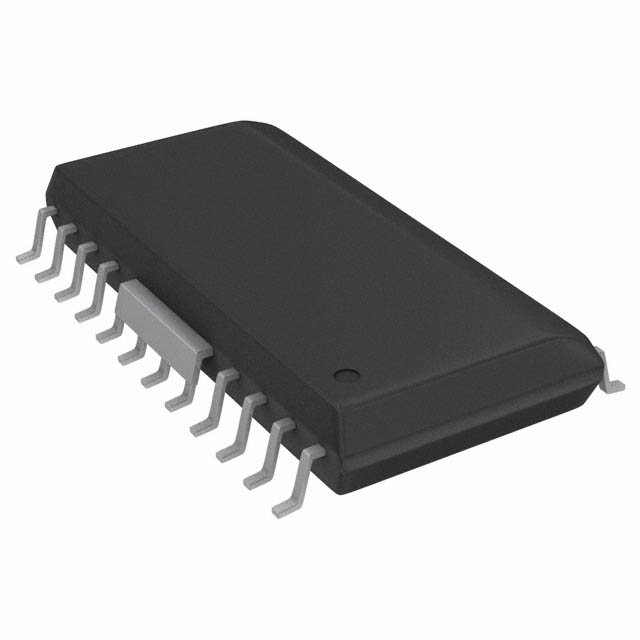

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AD815ARBZ-24-REEL
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	IC AMP DIFF DUAL LDIST 24SOIC
Datasheets:	AD815ARBZ-24-REEL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5277 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5277 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AD815ARBZ-24-REEL

Part Number	AD815ARBZ-24-REEL	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC AMP DIFF DUAL LDIST 24SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5277 pcs	Data sheet	AD815ARBZ-24-REEL.pdf
Voltage - Supply, Single/Dual (±)	10 V ~ 36 V, ±5 V ~ 18 V	Voltage - Input Offset	10mV
Supplier Device Package	24-SOIC w/Batwing	Slew Rate	900 V/µs
Series	-	Packaging	Tape & Reel (TR)
Package / Case	24-SOIC (0.295", 7.50mm Width), 18 Leads, Fused Leads	Output Type	-
Operating Temperature	-40°C ~ 85°C	Number of Circuits	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	5 (48 Hours)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Differential Amplifier 2 Circuit 24-SOIC w/Batwing
Current - Supply	30mA	Current - Output / Channel	500mA
Current - Input Bias	10µA	Base Part Number	AD815
Amplifier Type	Differential	-3db Bandwidth	120MHz
