AD7864BSZ-1

ADI (Analog Devices, Inc.)

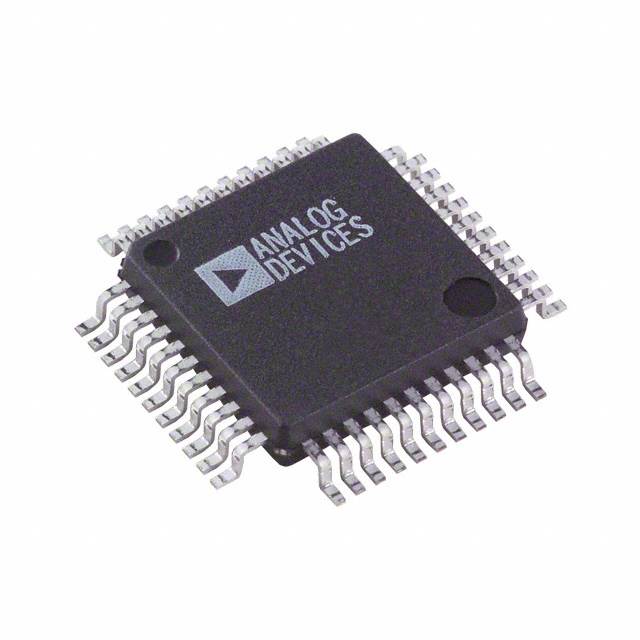

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AD7864BSZ-1
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	IC ADC 12BIT DUAL 4CHAN 44-MQFP
Datasheets:	AD7864BSZ-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2452 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2452 pcs

Reference Price (In US Dollars)

1 pcs: $14.334

96 pcs: $12.814

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$14.334

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AD7864BSZ-1

Part Number	AD7864BSZ-1	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC ADC 12BIT DUAL 4CHAN 44-MQFP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2452 pcs	Data sheet	AD7864BSZ-1.pdf
Voltage - Supply, Digital	5V	Voltage - Supply, Analog	5V
Supplier Device Package	44-MQFP (10x10)	Series	-
Sampling Rate (Per Second)	520k	Reference Type	External, Internal
Ratio - S/H:ADC	4:1	Packaging	Tray
Package / Case	44-QFP	Other Names	AD7864BSZ1
Operating Temperature	-40°C ~ 85°C	Number of Inputs	4
Number of Bits	12	Number of A/D Converters	1
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Single Ended
Features	Simultaneous Sampling	Detailed Description	12 Bit Analog to Digital Converter 4 Input 1 SAR 44-MQFP (10x10)
Data Interface	Parallel	Configuration	S/H-MUX-ADC
Base Part Number	AD7864	Architecture	SAR
