3M

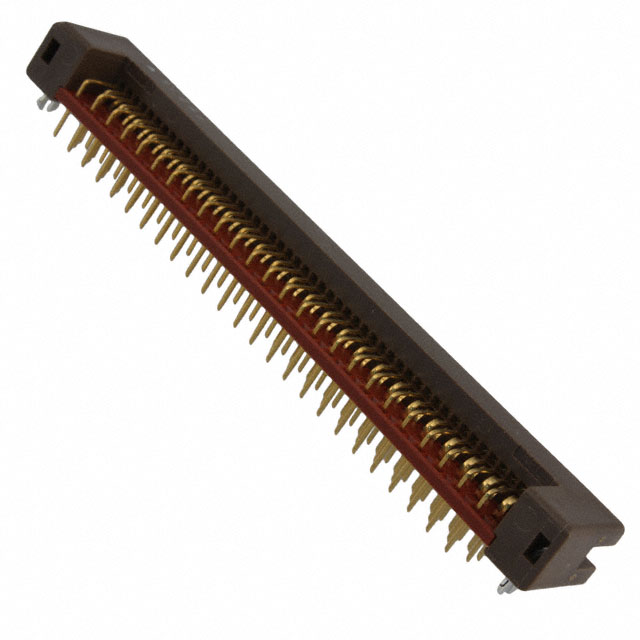

| Part Number | P50LE-100P1-RR1-DA | Manufacturer | 3M |
|---|---|---|---|
| Description | PAK50 CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12439 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Pak 50, P50LE | Row Spacing - Mating | - |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 0-00-51111-74112-2 5111174112 51111741122 80000907420 P50LE100P1RR1DA |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 100 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled | Insulation Height | 0.276" (7.00mm) |
| Insulation Color | Brown | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole, Right Angle 100 position 0.050" (1.27mm) | Current Rating | 0.5A |
| Contact Type | Center Strip Contact | Contact Shape | - |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Plug |
| Applications | - |
