3M

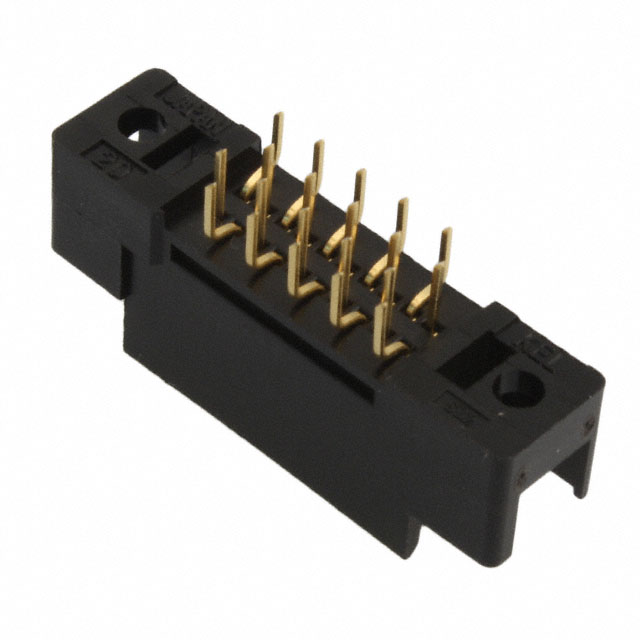

| Part Number | P50E-020P1-S1-EA | Manufacturer | 3M |
|---|---|---|---|
| Description | PAK50 CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27800 pcs | Data sheet | P50E-020P1-S1-EA.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Pak 50, P50E | Row Spacing - Mating | - |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 0-00-51111-73950-1 5111173950 51111739501 7010318579 80000906497 P50E020P1S1EA |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.421" (10.70mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 20 position 0.050" (1.27mm) | Current Rating | 0.5A |
| Contact Type | Center Strip Contact | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Plug |
| Applications | - |
