P05N-100PT-C-G

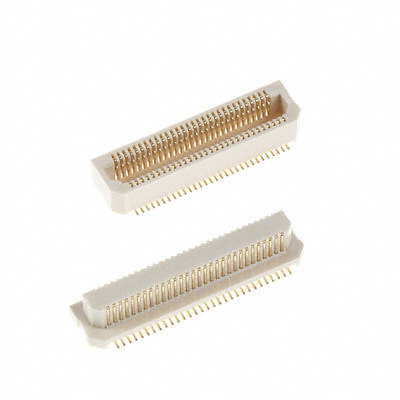

Image may be representation. See specifications for product details.

Product Overview

Part Number:	P05N-100PT-C-G
Manufacturer/Brand:	3M
Product description	CONN PLUG 100POS .5MM VERT SM
Datasheets:	P05N-100PT-C-G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17656 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17656 pcs

Reference Price (In US Dollars)

1000 pcs: $1.699

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.699

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of P05N-100PT-C-G

Part Number	P05N-100PT-C-G	Manufacturer	3M
Description	CONN PLUG 100POS .5MM VERT SM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17656 pcs	Data sheet	P05N-100PT-C-G.pdf
Series	P05N	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	04801146324 15020149108 4801146324 48011463247 P05N100PTCG
Number of Rows	2	Number of Positions	100
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	5mm	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.169" (4.30mm)
Features	Solder Retention	Detailed Description	100 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Contact Finish Thickness	8.00µin (0.203µm)	Contact Finish	Gold
Connector Type	Plug, Center Strip Contacts
