3M

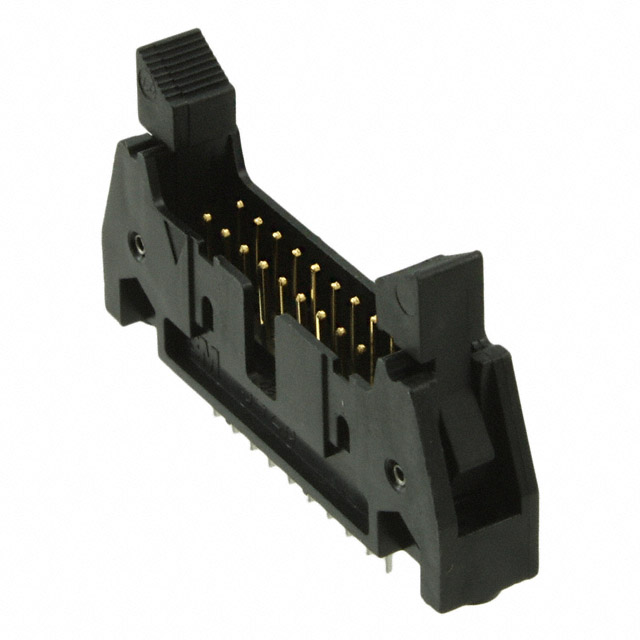

| Part Number | N3428-6203RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 20POS STR S-LATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24795 pcs | Data sheet | 1.N3428-6203RB.pdf2.N3428-6203RB.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | 3000 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.695" (17.65mm) | Other Names | 00051111654583 05111165458 05111992022 3M11981 5111165458 51111654583 5111992022 51119920222 7000057621 80001211863 80400030237 N3428-6203RB-ND N3428-6503RB N3428-6503RB-ND N34286203RB |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.680" (17.27mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Mounting Flange | Fastening Type | Latch Lock/Eject Hooks, Short |
| Detailed Description | Connector Header Through Hole 20 position 0.100" (2.54mm) | Current Rating | 1.75A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.155" (3.94mm) |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
