3M

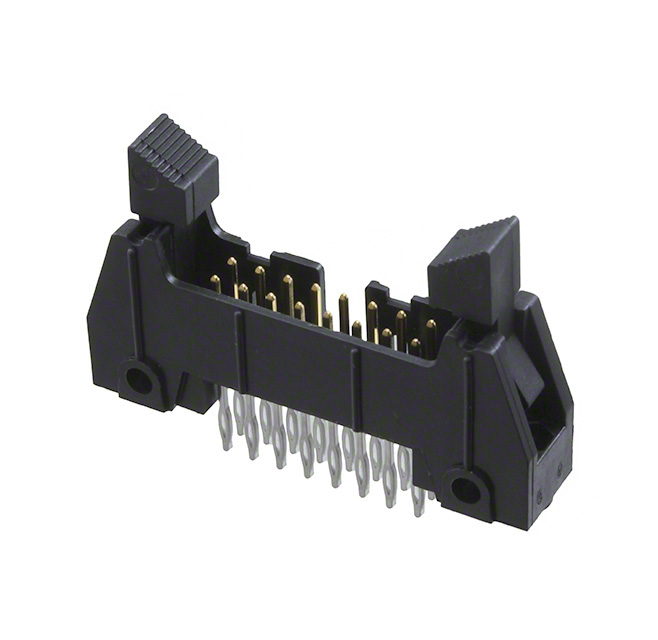

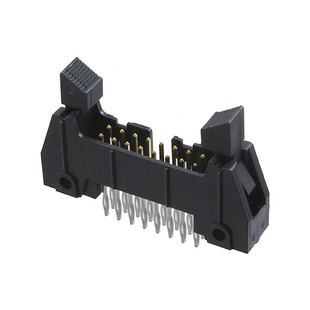

| Part Number | N3408-620T02RB | Manufacturer | 3M |
|---|---|---|---|
| Description | 16/HDR/STR/SL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10771 pcs | Data sheet | 1.N3408-620T02RB.pdf2.N3408-620T02RB.pdf |
| Voltage Rating | - | Termination | Press-Fit, Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | 3000 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.715" (18.16mm) | Other Names | 0-00-51111-65965-6 05111165965 3408-620T02RB 3408-620T02RB-ND 3M157659 7100166934 80-0009-0241-3 80000902413 N3408-620T02-RB N3408-620T02RB-ND N3408620T02RB |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.680" (17.27mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Mounting Flange | Fastening Type | Latch Lock/Eject Hooks, Short |
| Detailed Description | Connector Header Through Hole 16 position 0.100" (2.54mm) | Current Rating | 1.75A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.175" (4.45mm) |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 300.0µin (7.62µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
