3M

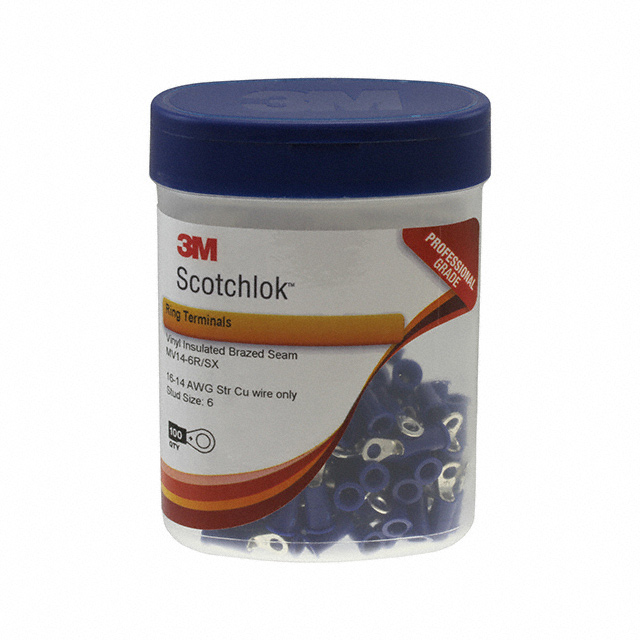

| Part Number | MV14-6R/SX-BOTTLE | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN RING CIRC 14-16AWG #6 100PC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1633 pcs | Data sheet | MV14-6R/SX-BOTTLE.pdf |
| Wire Gauge | 14-16 AWG | Width - Outer Edges | 0.250" (6.35mm) |
| Thickness | 0.030" (0.76mm) | Termination | Crimp |
| Terminal Type | Circular | Stud/Tab Size | 6 Stud |
| Series | Scotchlok™ | Packaging | Bulk |
| Other Names | 00051128587539 3M161919 51128587539 7000133331 80611458987 MV14-6R/SX-BOTTLE-ND |
Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Vinyl |
| Manufacturer Standard Lead Time | 3 Weeks | Length - Overall | 0.800" (20.32mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.170" (4.32mm) |
| Insulation | Insulated | Features | Brazed Seam |
| Detailed Description | Ring Terminal Connector 6 Stud Circular 14-16 AWG Crimp | Contact Material | Copper, ETP |
| Contact Finish | Tin | Color | Blue |
