3M

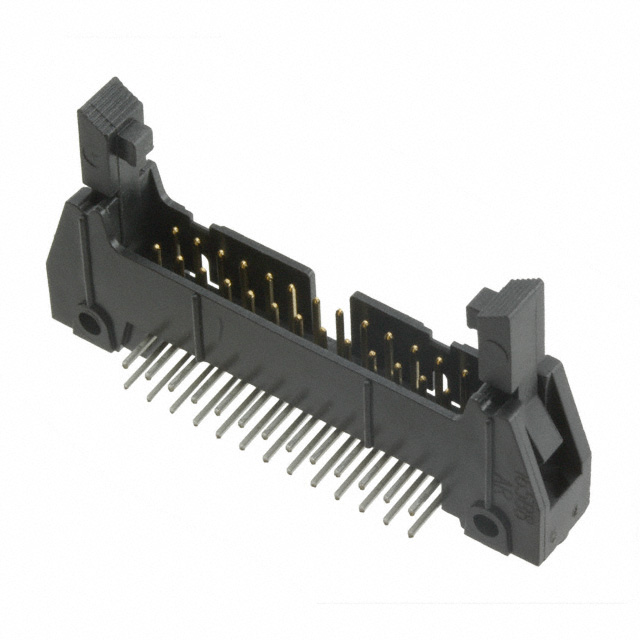

| Part Number | D3429-5302-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 26POS R/A LONG LATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58413 pcs | Data sheet | 1.D3429-5302-AR.pdf2.D3429-5302-AR.pdf |
| Voltage - DC Spark Over (Nom) | Brass | Type Attributes | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Stacking Direction | Male Pin | Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square | Series | D3000 |
| Row Spacing - Mating | Shrouded - 4 Wall | RoHS Status | Tray |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.112" (2.84mm) | Other Names | 0-00-51119-90813-8 5111990813 51119908138 80-0012-0540-2 80001205402 D3429-5302AR D34295302AR |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 26 | Number of Contacts | 39µin (1.00µm) |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Standard Lead Time | 3 Weeks | Manufacturer Part Number | D3429-5302-AR |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | - | Features | Keying Slot, Mounting Flange |
| Expanded Description | 26 Positions Header Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Description | CONN HEADER 26POS R/A LONG LATCH |
| Current Rating | 1.75A | Current - Max/Contact | Latch Lock/Eject Hooks, Long |
| Contact Length - Post | 0.240" (6.10mm) | Contact Length - Mating | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | 10µin (0.25µm) | Contact Finish - Mating | 0.340" (8.64mm) |
| Connector Type | Header | Actual Diameter | Black |
