3M

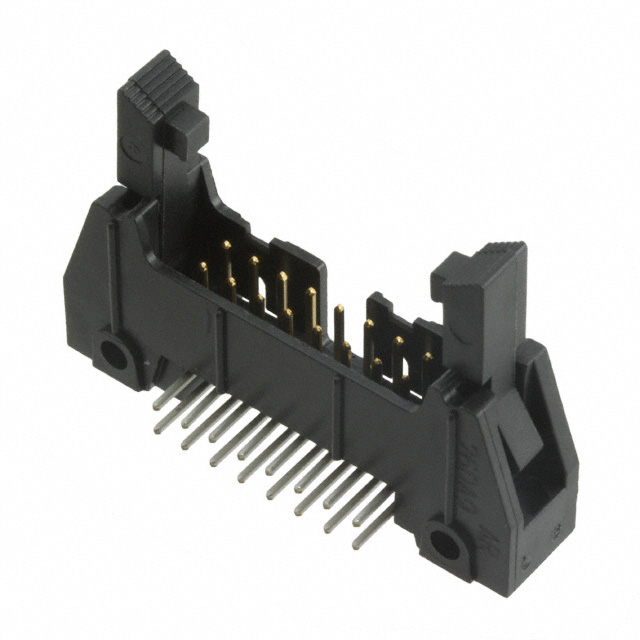

| Part Number | D3408-5302-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 16POS R/A LONG LATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44015 pcs | Data sheet | 1.D3408-5302-AR.pdf2.D3408-5302-AR.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | D3000 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 0-00-51119-90810-7 3M157252 5111990810 51119908107 7010396951 80-0012-0537-8 80001205378 D3408-5302-AR-ND D3408-5302AR D34085302AR |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.340" (8.64mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Mounting Flange | Fastening Type | Latch Lock/Eject Hooks, Long |
| Detailed Description | Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm) | Current Rating | 1.75A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.112" (2.84mm) |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
