D2534-6002-AR

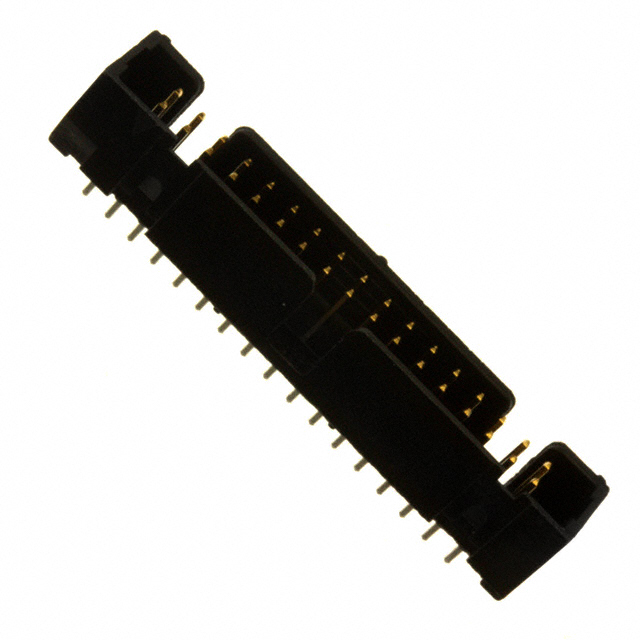

Image may be representation. See specifications for product details.

Product Overview

Part Number:	D2534-6002-AR
Manufacturer/Brand:	3M
Product description	CONN HEADER 34POS VERT 10GOLD
Datasheets:	1.D2534-6002-AR.pdf 2.D2534-6002-AR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37344 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37344 pcs

Reference Price (In US Dollars)

1 pcs: $0.921

10 pcs: $0.836

280 pcs: $0.648

560 pcs: $0.597

1120 pcs: $0.512

5040 pcs: $0.454

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.921

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of D2534-6002-AR

Part Number	D2534-6002-AR	Manufacturer	3M
Description	CONN HEADER 34POS VERT 10GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37344 pcs	Data sheet	1.D2534-6002-AR.pdf 2.D2534-6002-AR.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	D2500	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.492" (12.50mm)	Other Names	00051119907193 05111990719 5111990719 51119907193 7010347796 80001204462 D25346002AR MHC34E
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	34
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Insulation Height	0.253" (6.43mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 34 position 0.100" (2.54mm)	Current Rating	1.75A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.112" (2.84mm)
Contact Length - Mating	0.243" (6.17mm)	Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
